Front

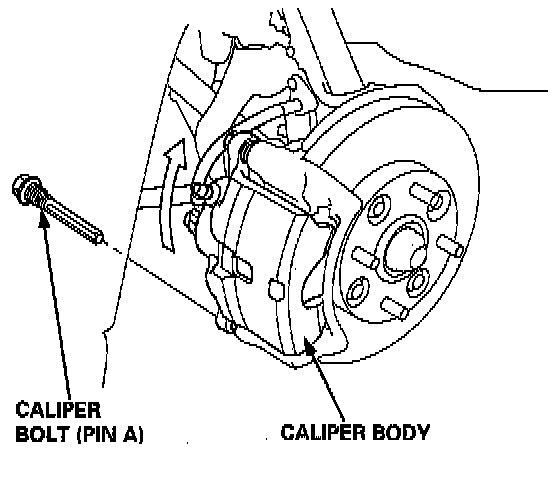

Front Brake Assembly:

- Remove the caliper bolt (pin A), and pivot the caliper up out of the way.

NOTE: Check the hoses and pin boots for damage and deterioration.

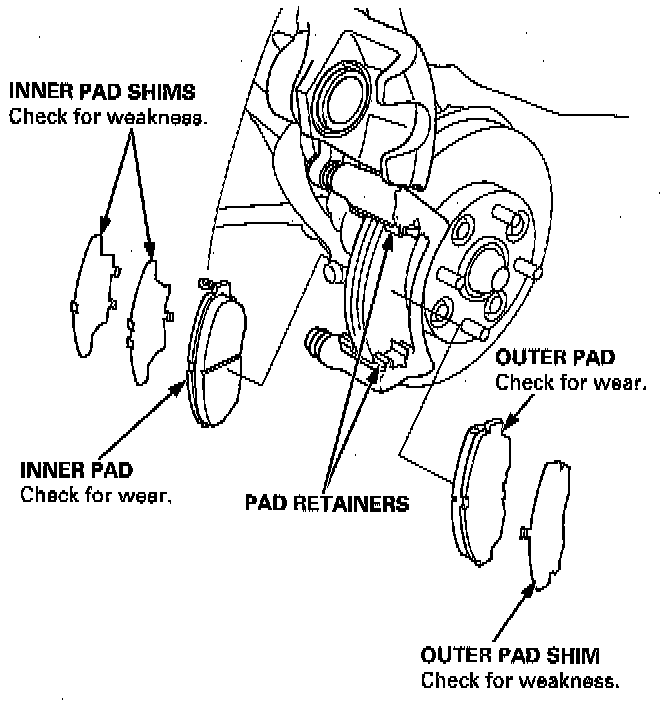

Pad And Shim Location:

- Remove the pad shims, pad retainers and pads.

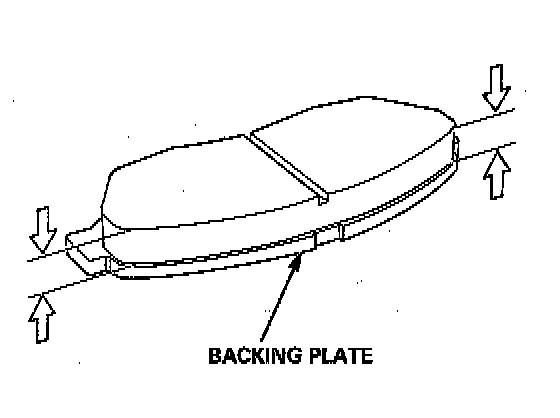

Brake Pad Thickness Check:

- Using vernier calipers, measure the thickness of each brake pad lining.

Specs:
Front Brake Pad Thickness 12.0 - 13.0 mm (0.47 - 0.51 in)
Service Limit 1.6 mm (0.06 in)

NOTE:
- Measurement does not include pad backing plate thickness.
- If the brake pad thickness is less than service limit, replace the front pads as a set.
