Removal and Disassembly

WARNING:
- Never use an air hose or dry brush to clean brake assemblies.
- Use an OSHA-approved vacuum cleaner to avoid breathing brake dust.
- Contaminated brake discs or pads reduce stopping ability.
- When reusing the pads, always reinstall the brake pads in their original positions to prevent loss of braking efficiency.

CAUTION:
- Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
- To prevent spills, cover the hose joints with rags or shop towels.
- Clean all parts in brake fluid and air dry; blow out all passages with compressed air.

REMOVAL

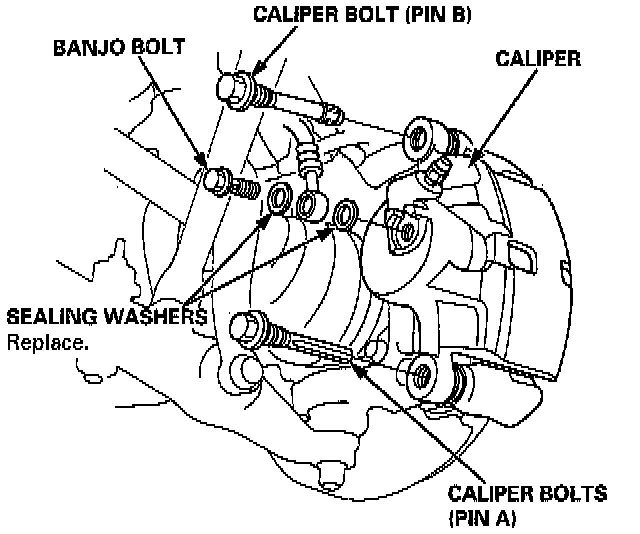

- Remove the banjo bolt and disconnect the brake hose from the caliper.

Caliper Bolt Removal:

- Remove the caliper bolts (pin A and pin B), then remove the caliper from the bracket.

Caliper Boot Removal:

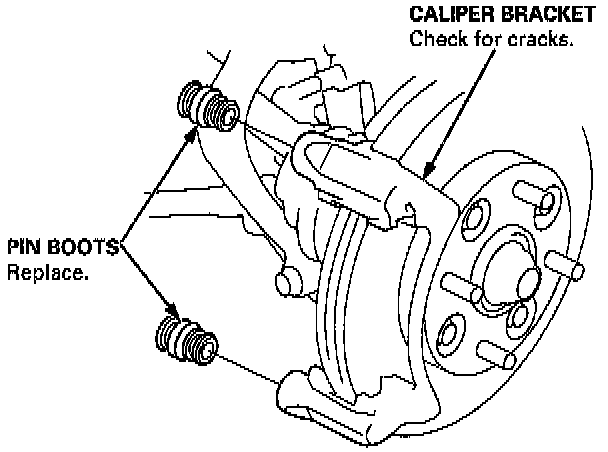

- Remove the pin boots from the caliper bracket.

DISASSEMBLY

WARNING: Do not place your fingers in front of the piston. Do not use high air pressure; use an OSHA-approved 30 PSI nozzle.

Caliper Piston Removal:

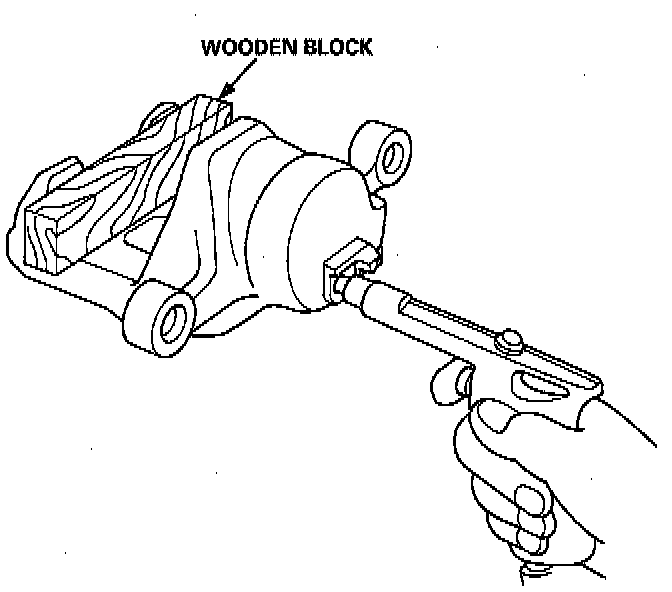

- If necessary, apply compressed air to the caliper fluid inlet to get the piston out. Place a shop rag or wooden block as shown to cushion the piston when it is expelled Use low pressure air in short spurts.

- Remove the piston from the caliper, and check the piston for scoring on surface.

Caliper Seal & Boot Orientation:

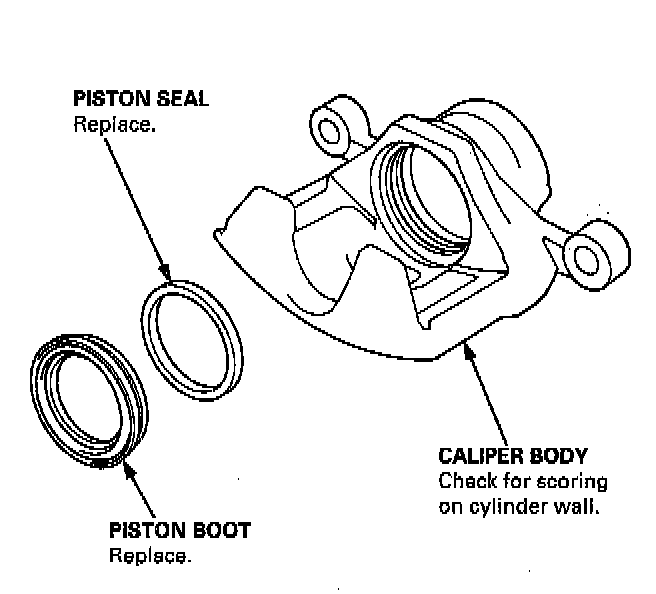

- Remove the piston boot and piston seal.

CAUTION: Take care not to damage the cylinder bore.
