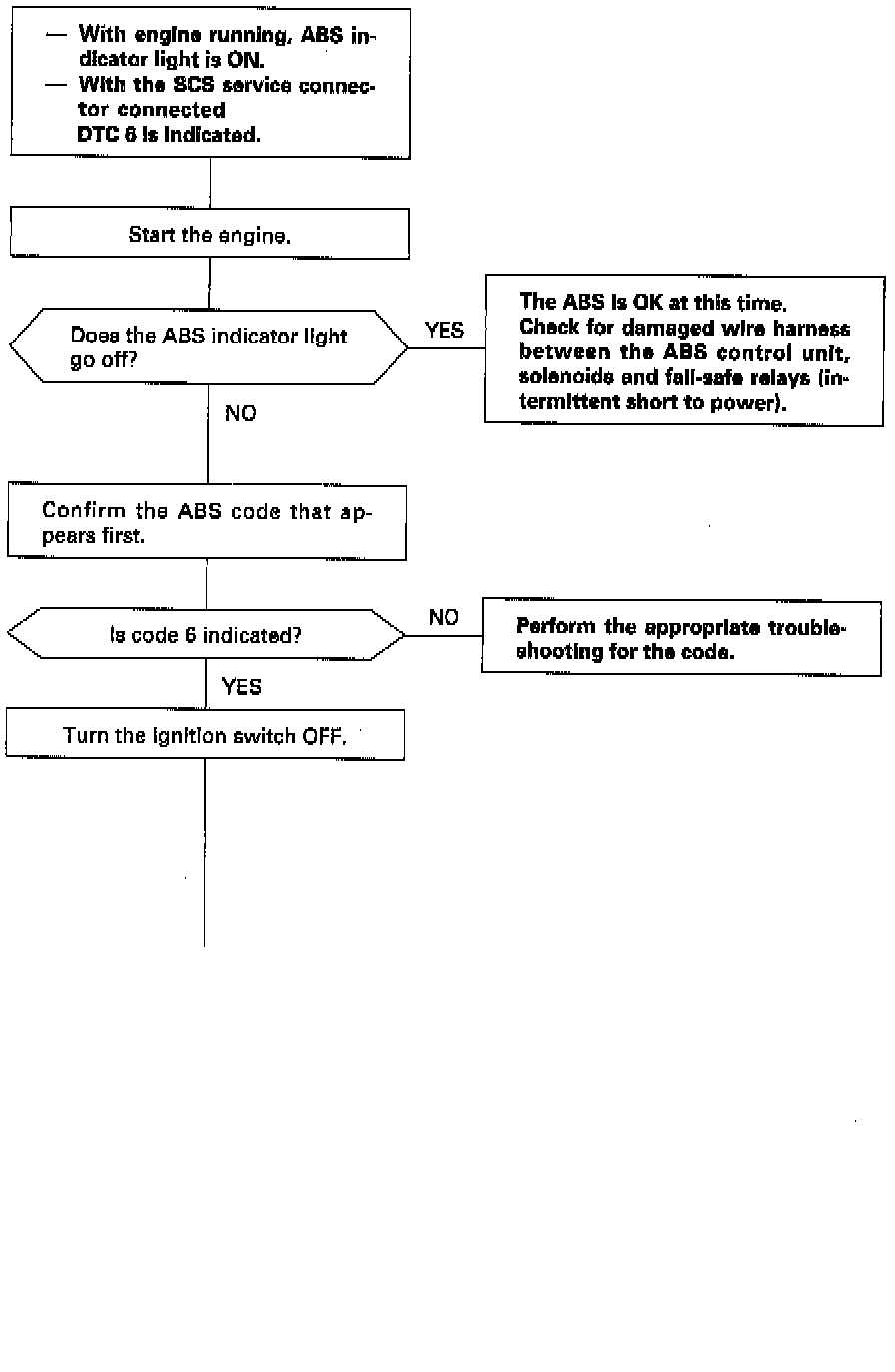

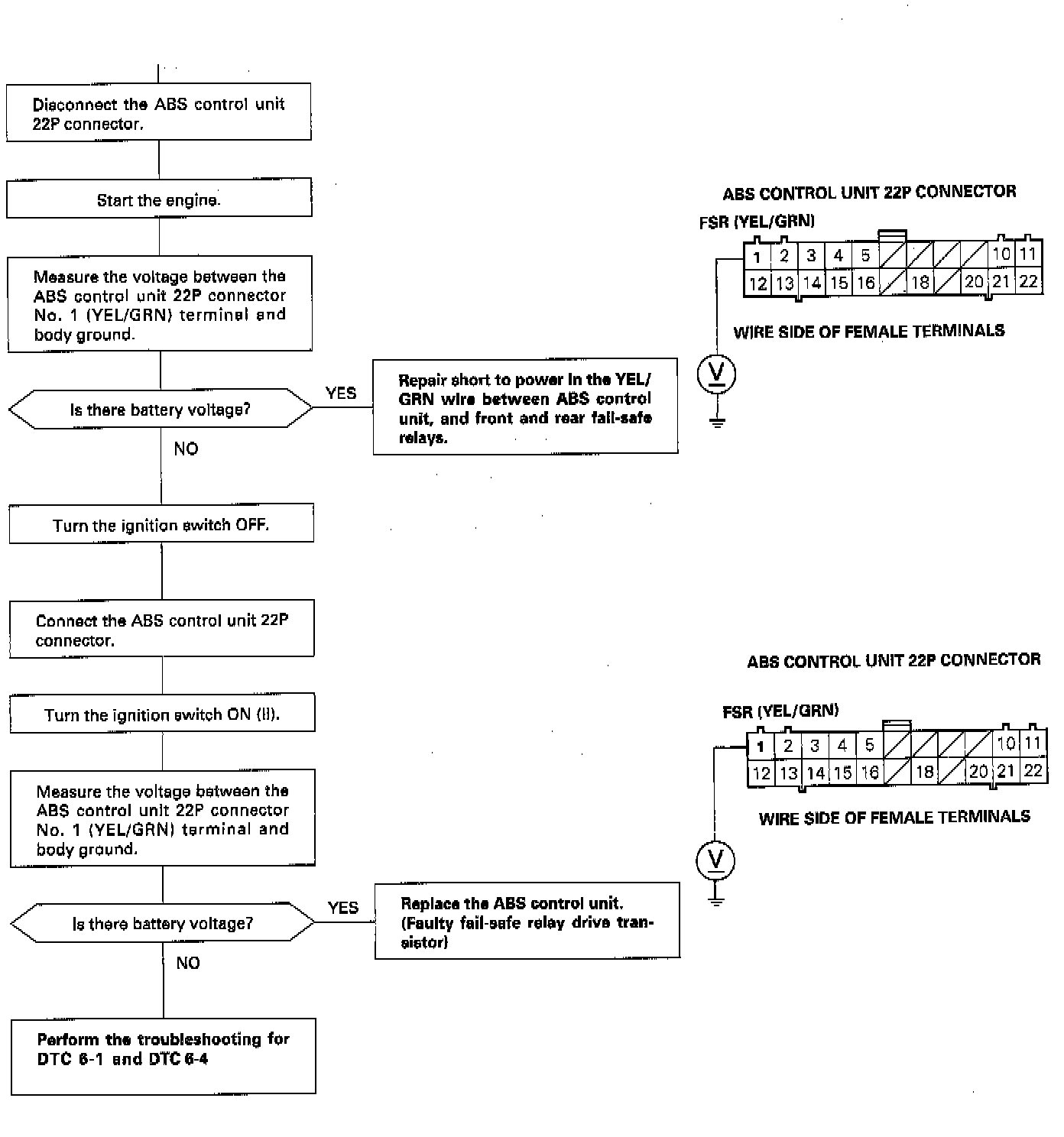

DTC 6

Front & Rear Fail-safe Relays. (Part 1 Of 2):

Front & Rear Fail-safe Relays. (Part 2 Of 2):

CONDITIONS
The Anti-lock Brake System (ABS) control unit monitors the voltage from the battery for the six solenoids during the initial diagnosis when the fail-safe relays are OFF. The ABS control unit keeps the ABS indicator light on if it detects battery voltage at the-front and rear solenoid circuits.

POSSIBLE CAUSES
- Short to power in the relay drive circuits between the fail-safe relays and ABS control unit.
- Faulty relay drive transistor (ON) in the ABS control unit.
