DTC 9-2

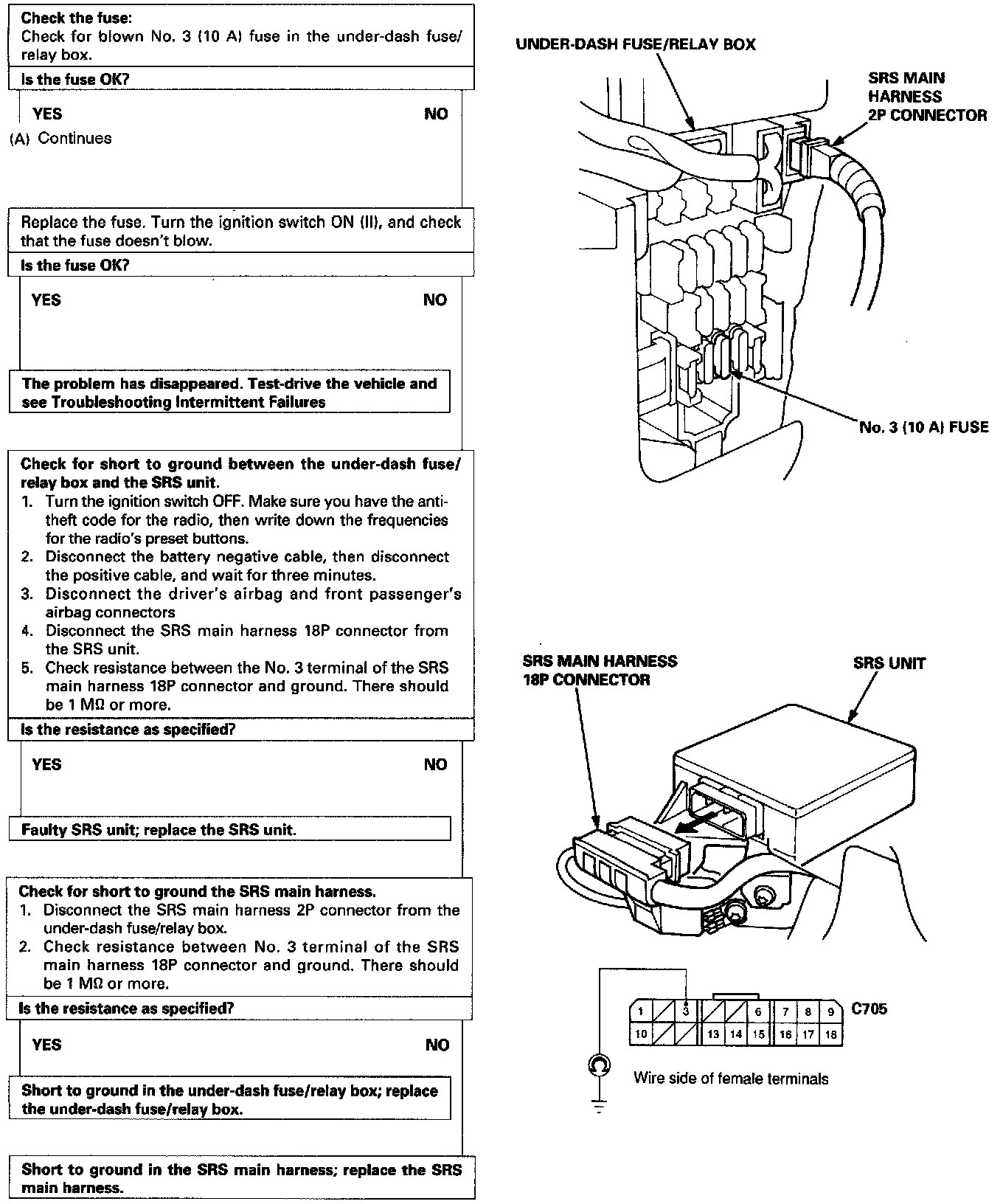

DTC 9-2 (Part 1 Of 2):

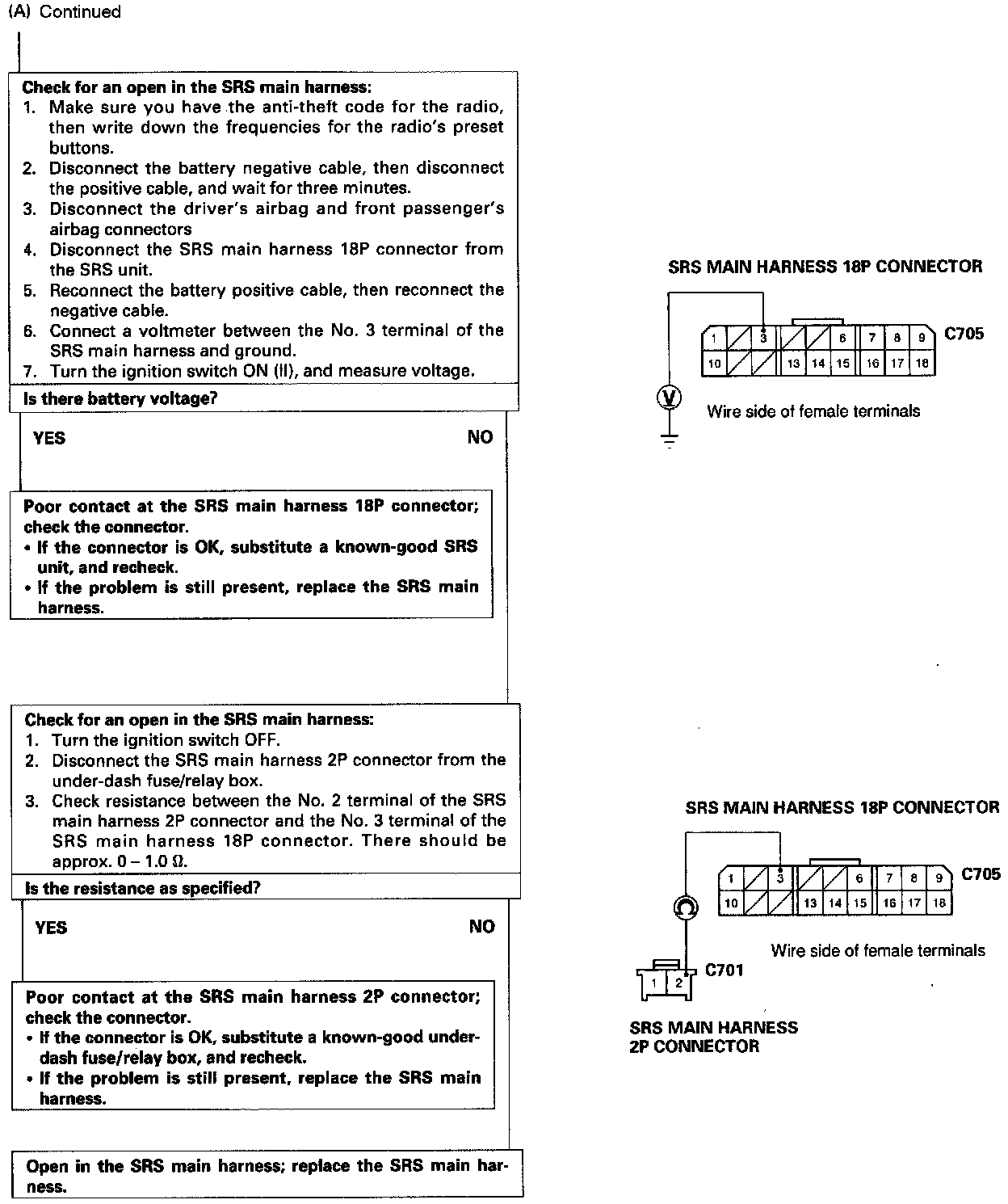

DTC 9-2 (Part 2 Of 2):






CAUTION: Whenever the ignition switch is ON, or has been turned OFF for less than three minutes, be careful not to bump the SRS unit; the airbags could accidentally deploy and cause damage or injuries.
