Relay Box
>>
Application and ID
>>
Under-Hood ABS Fuse/Relay Box
Under-Hood ABS Fuse/Relay Box

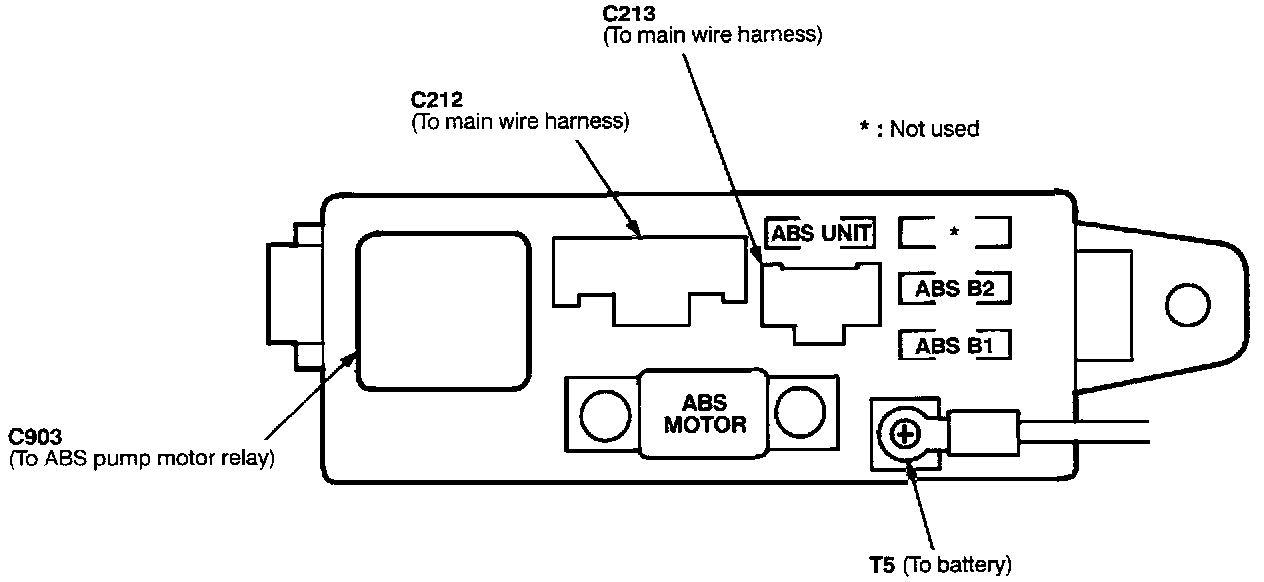

Under-hood ABS Fuse/Relay Box:

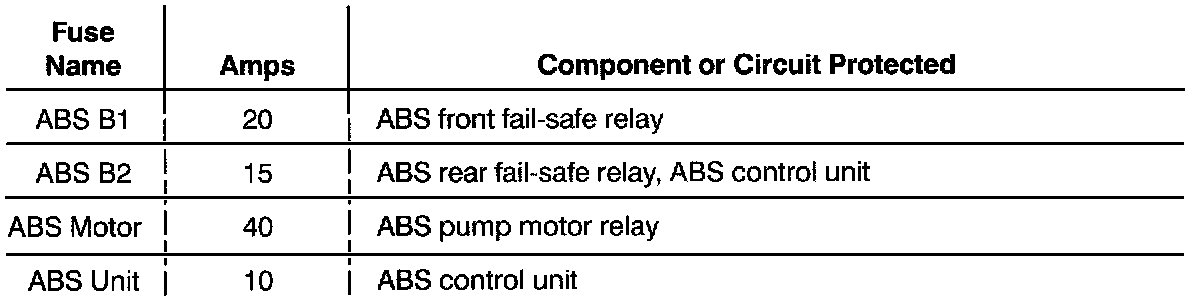

Fuse/Relay Information-Under-hood ABS Fuse/Relay Box:
