Home >> Acura >> 1995 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Temperature Sensor (Gauge) >> Locations >> Photo 18

Photo 18

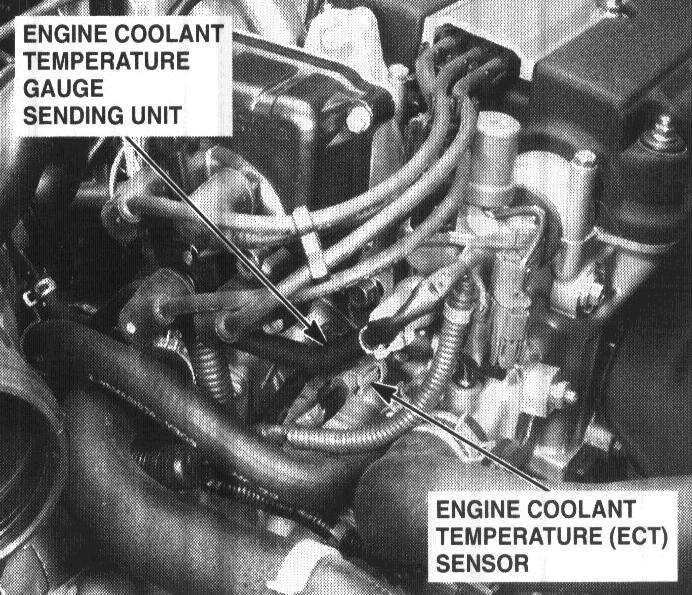

18. Right Side of Engine (GS-R):




Right Side Of Engine
