Home >> Acura >> 1995 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Hood Switch / Sensor >> Hood Sensor/Switch (For Alarm) >> Locations

Hood Sensor/Switch (For Alarm): Locations

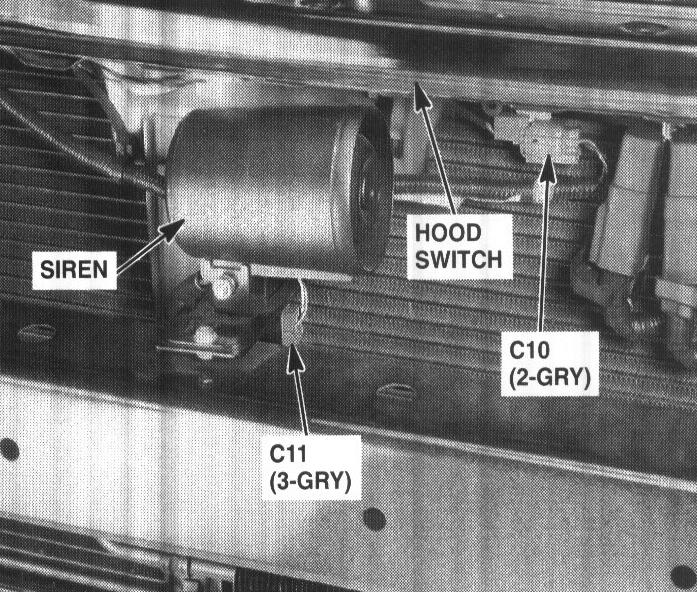

120. Behind Center of Front Bumper (with Security):




Behind Center Of Front Bumper
