Home >> Acura >> 1995 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Flow of Diagnosis

Flow of Diagnosis

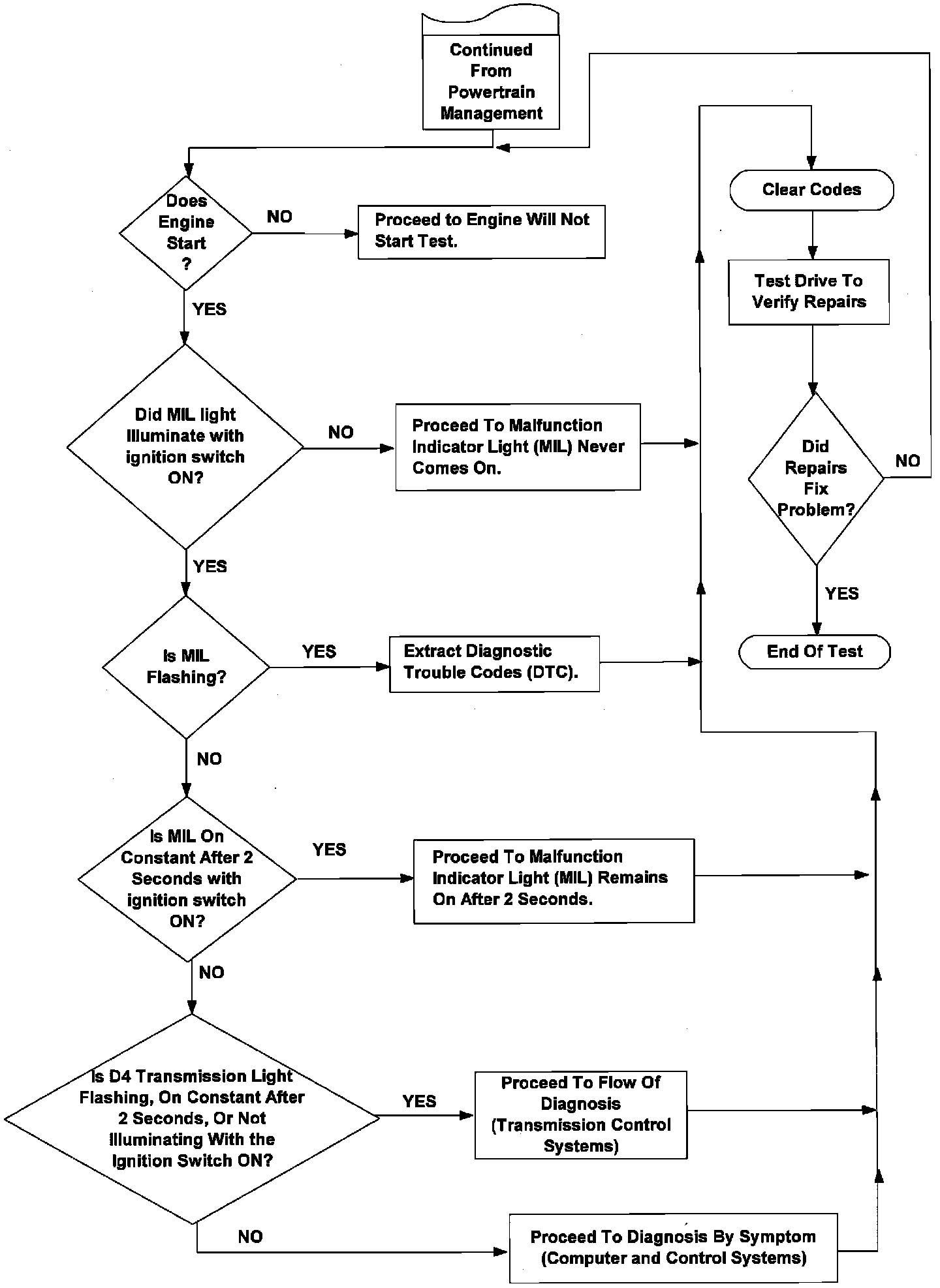

Flow Of Diagnosis (Computer And Control Systems):



Flow Of Diagnosis:
