Automatic Transaxle (A/T) Gear Position Signal
Automatic Transaxle (A/T) Gear Position Signal

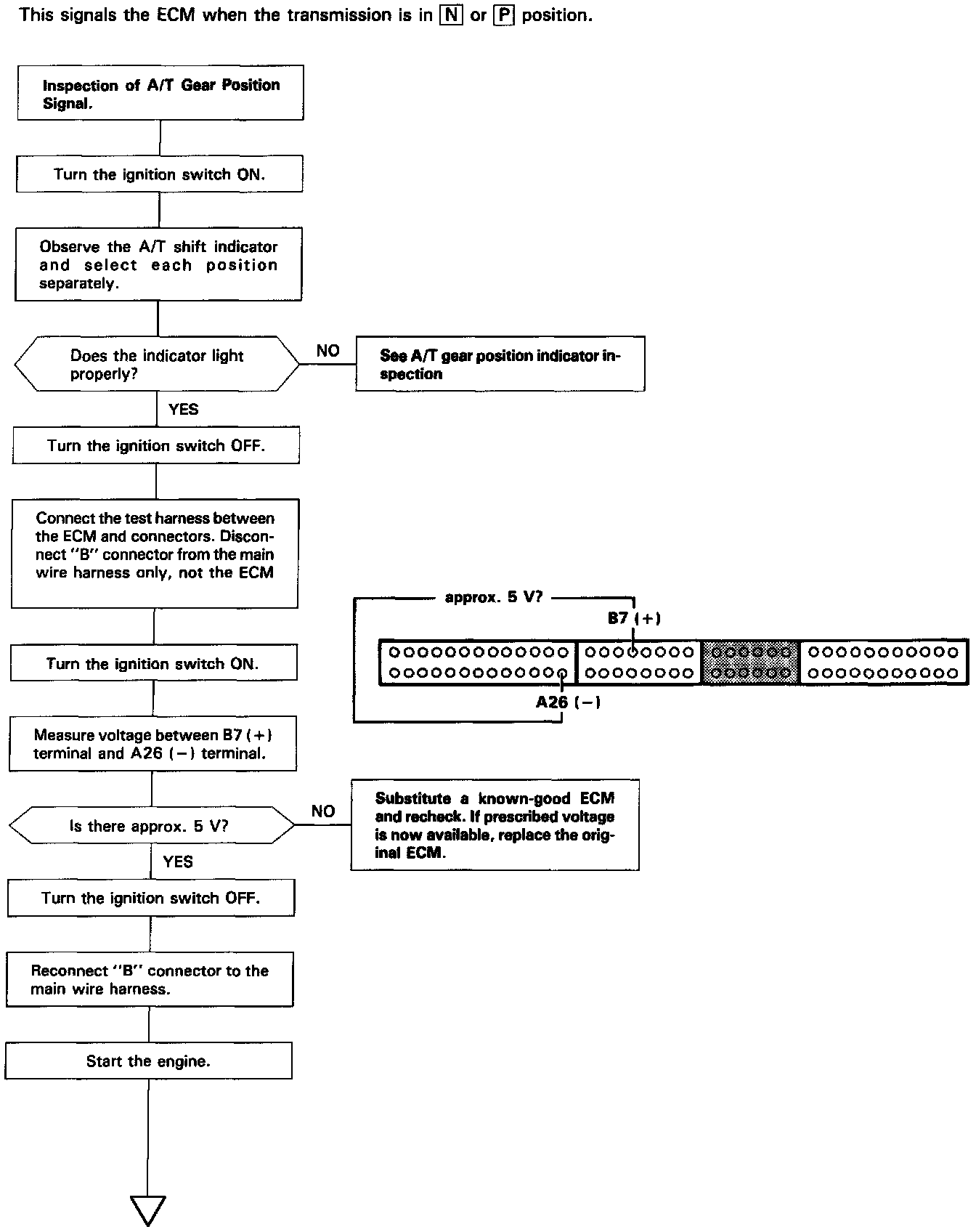

A/T Gear Shift Position Signal (1 Of 2):

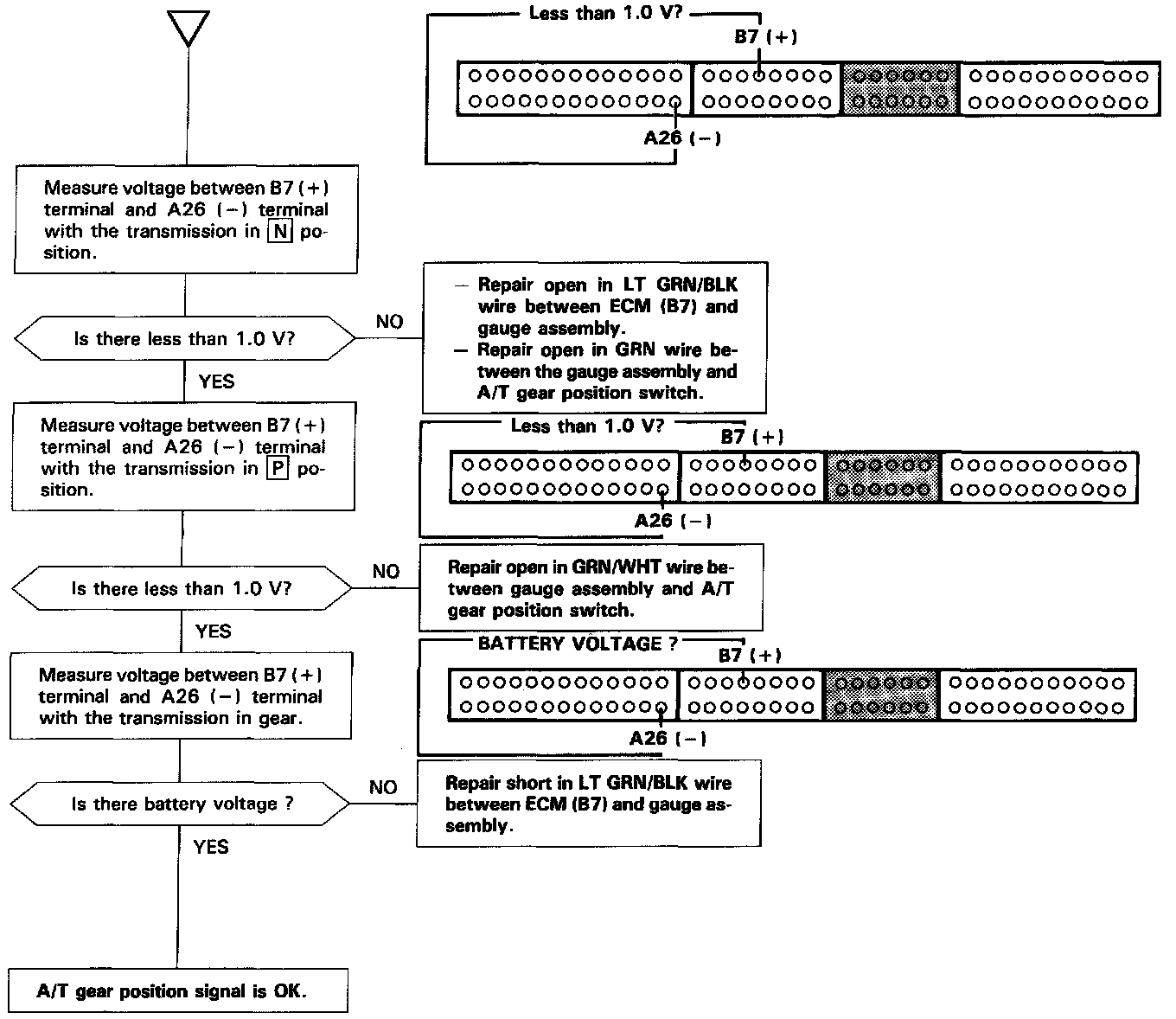

A/T Gear Position Signal (2 Of 2):
