Alternator FR Signal Circuit Troubleshooting

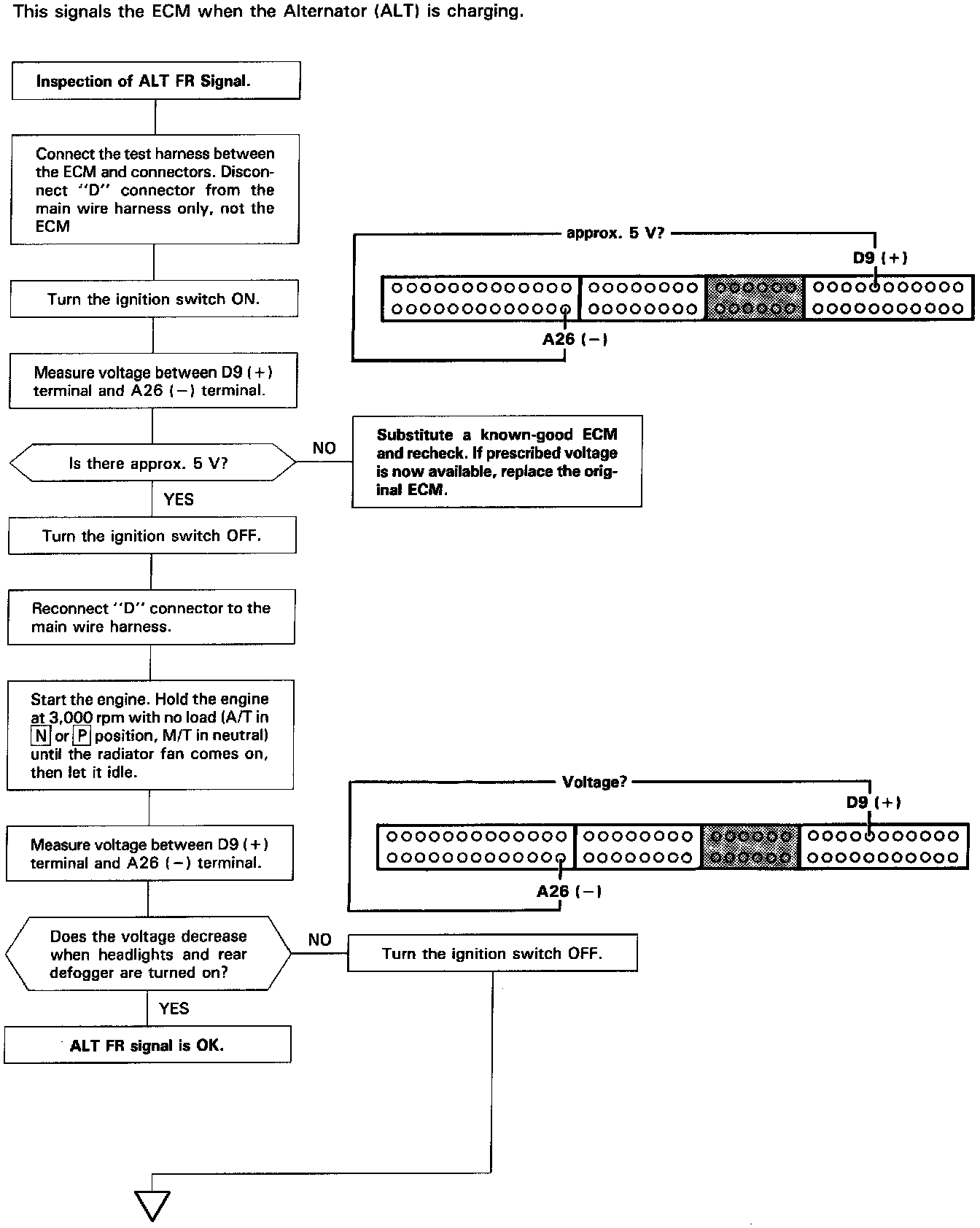

Alternator FR Signal (1 Of 2):

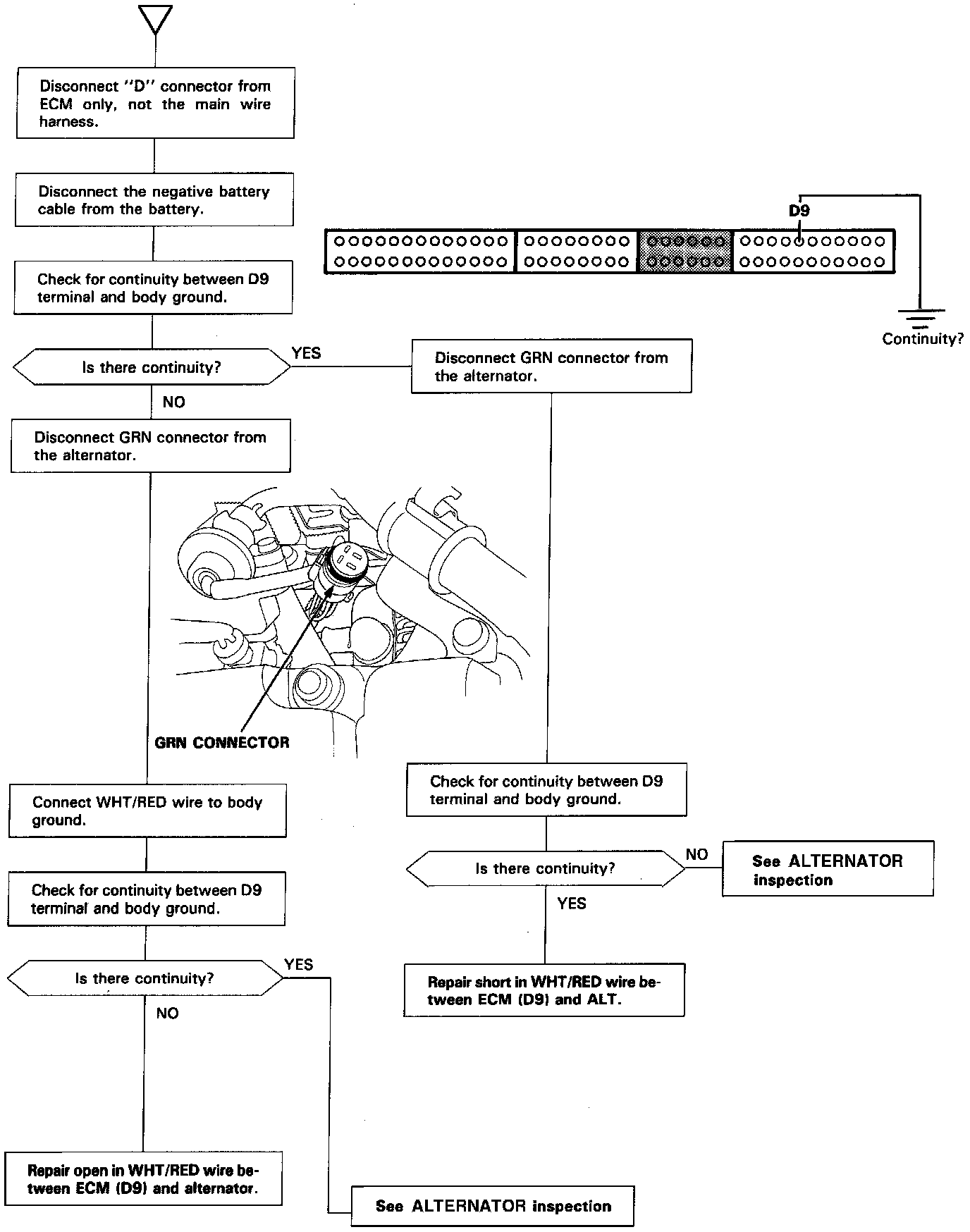

Alternator FR Signal (2 Of 2):
