Home >> Acura >> 1995 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Wiring Diagrams >> Fans/Fan Controls

Fans/Fan Controls

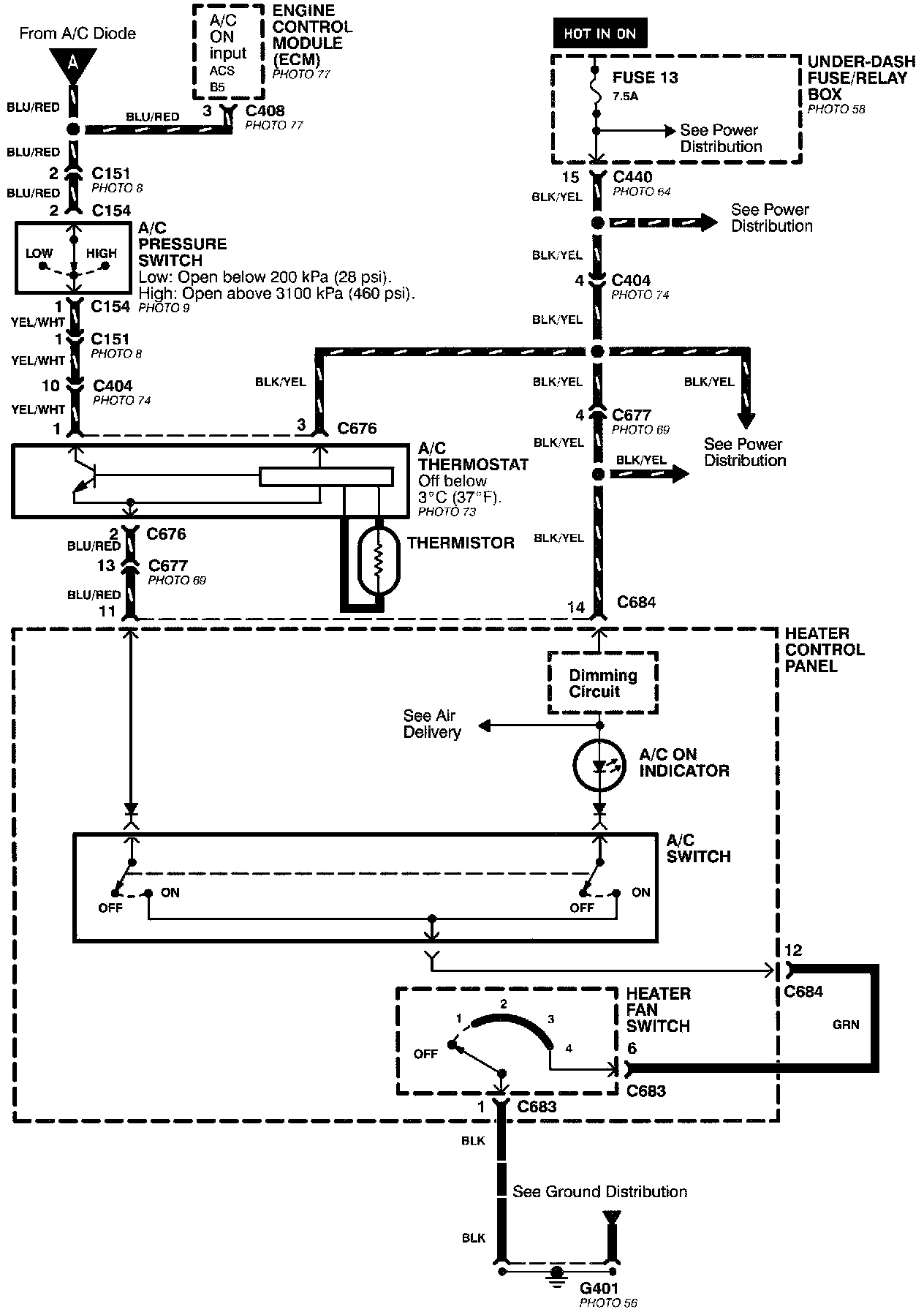

Fans-With A/C (Part 1 Of 2):

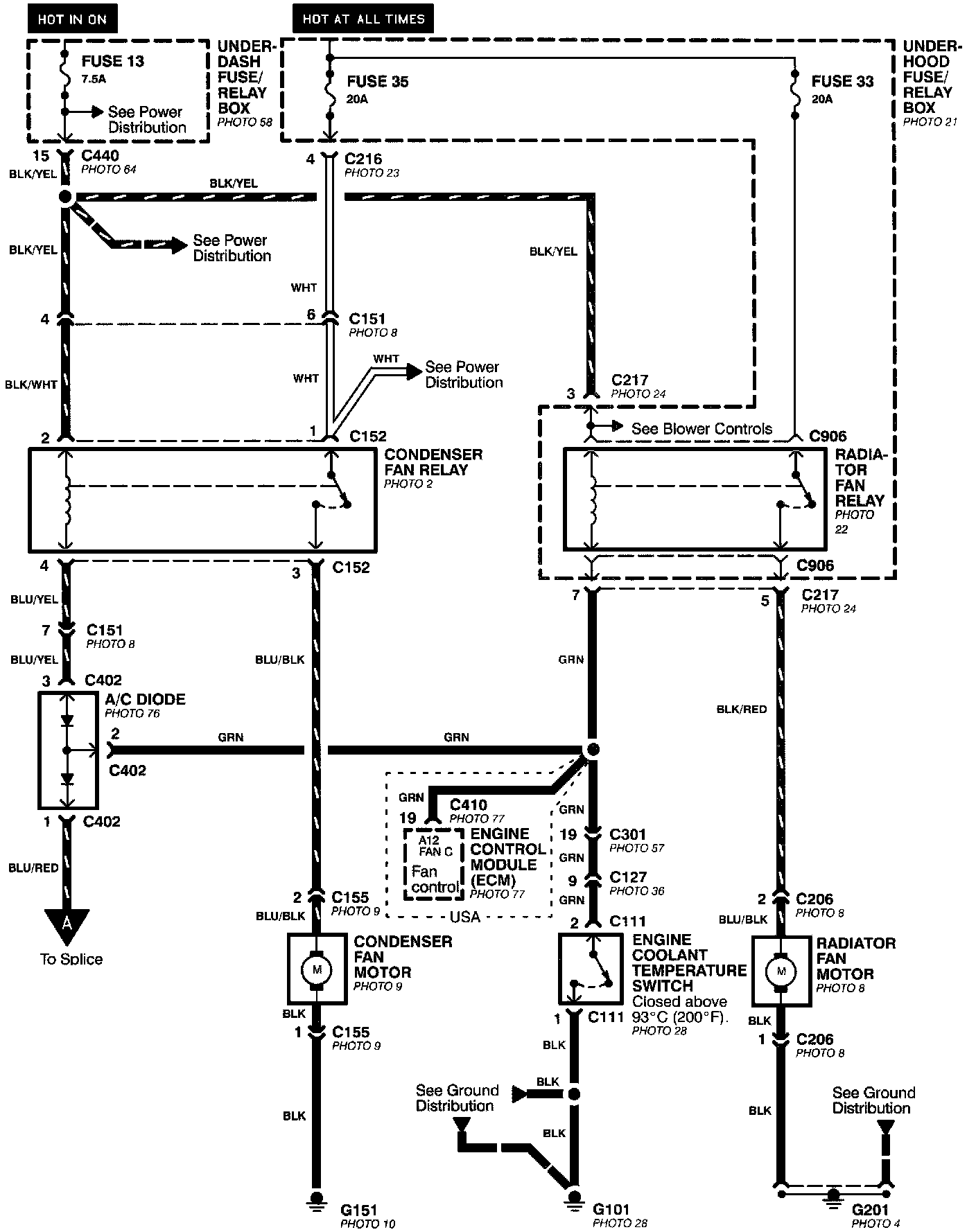

Fans-With A/C (Part 2 Of 2):
