Home >> Acura >> 1995 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Cruise Control >> Cruise Control Vacuum Solenoid >> Testing and Inspection

Cruise Control Vacuum Solenoid: Testing and Inspection

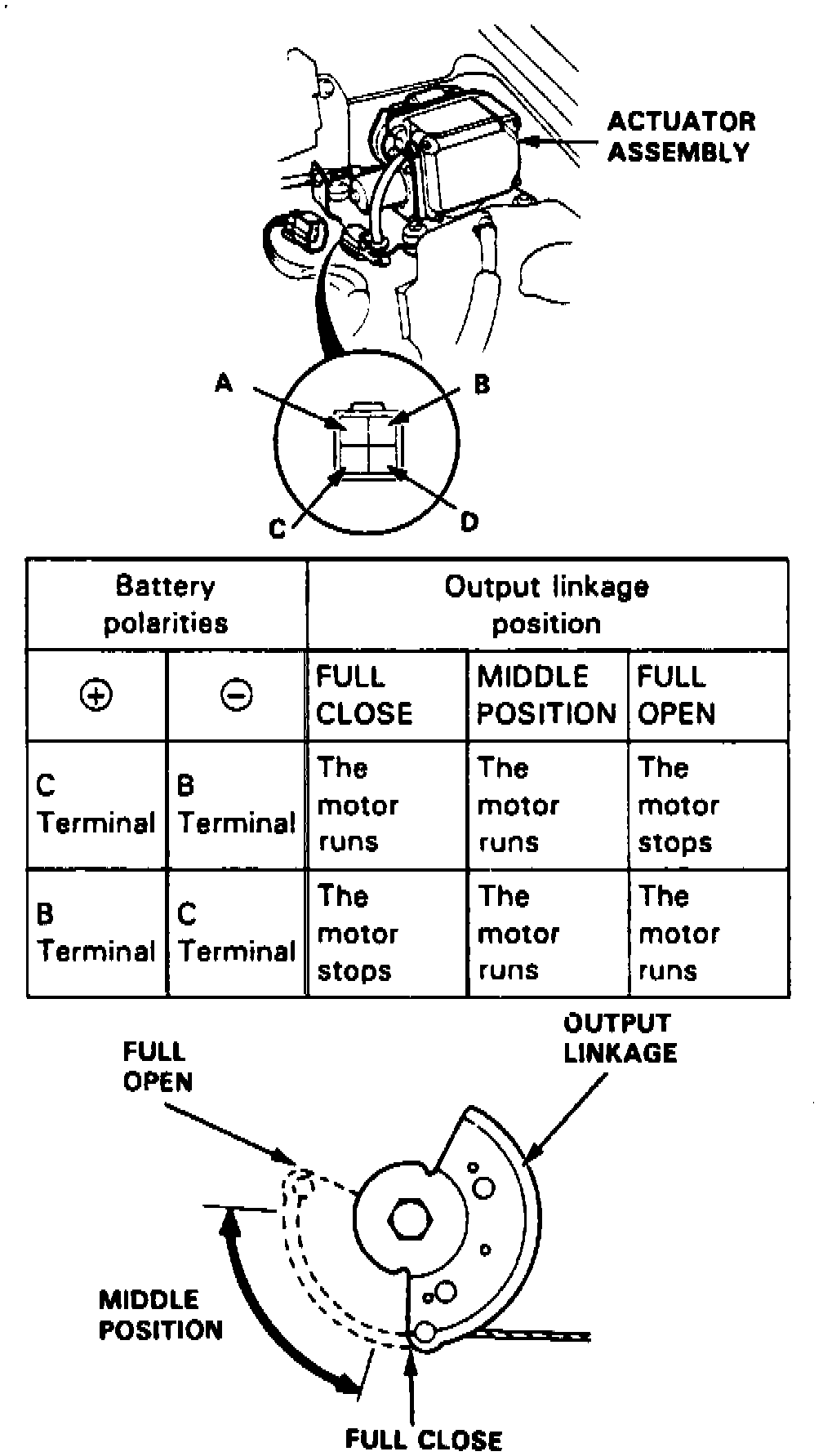

Fig. 30 Actuator Solenoid:





Refer to Fig. 30 for solenoid testing procedure.
