Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Power Brake Assist
>>
Vacuum Brake Booster
>>
Service and Repair
>>
Removal and Installation
Removal and Installation

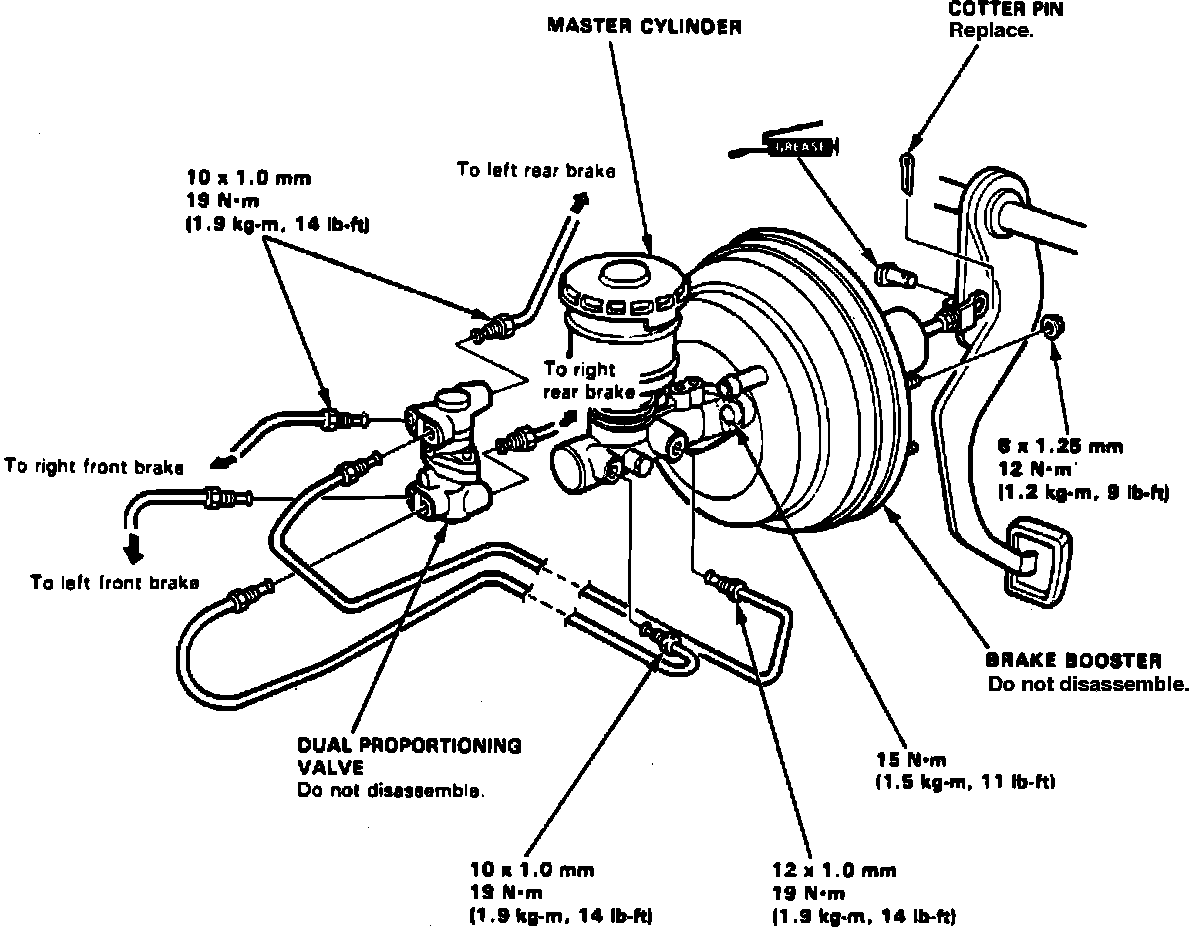

Fig. 2 Brake Booster Replacement:
Refer to
Fig. 2
for booster replacement.
