Electrical Diagrams

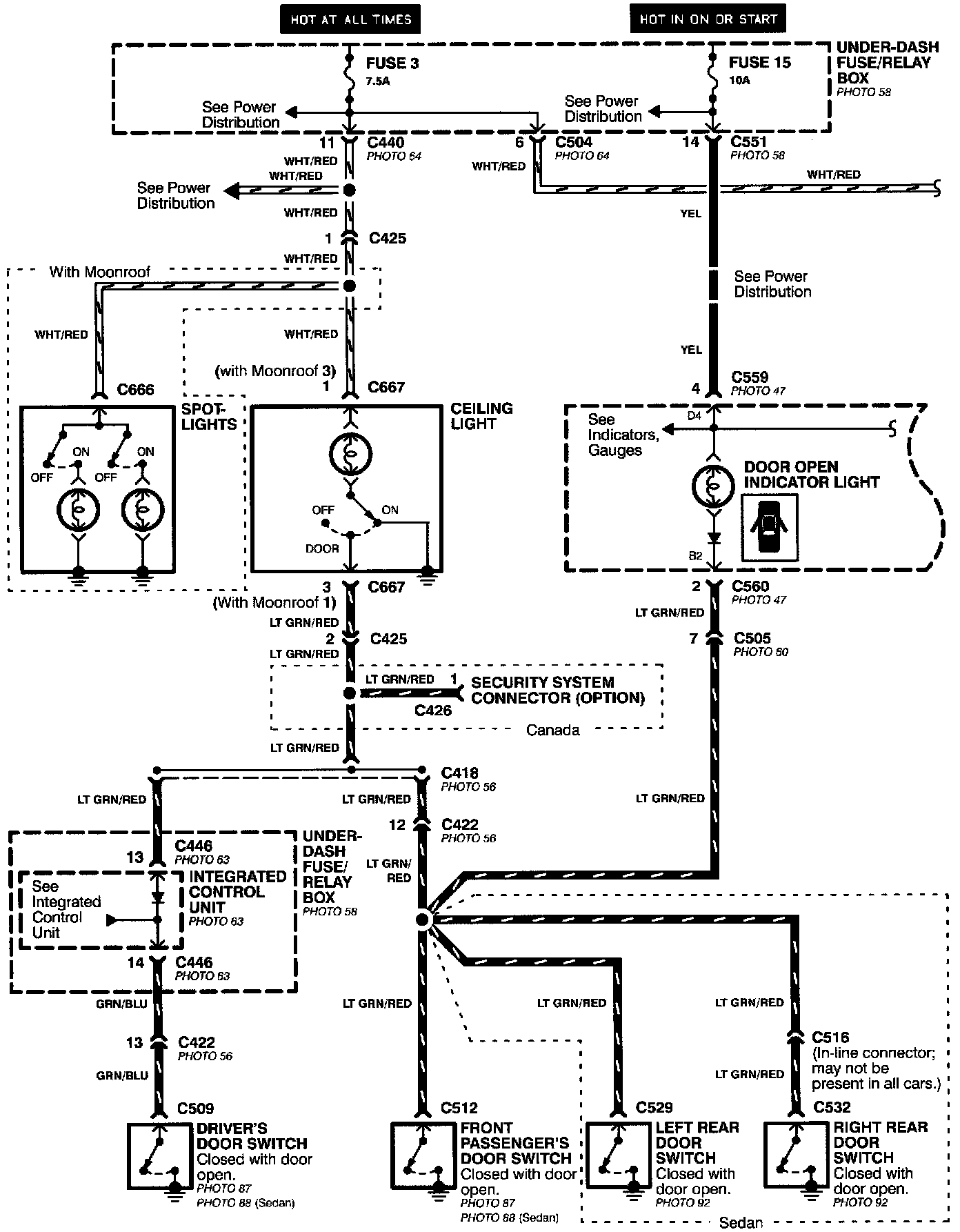

Ceiling, Spot, Cargo Area, And Trunk Lights & Door, Hatch And Trunk Lid Open Indicators (Part 1 Of 2):

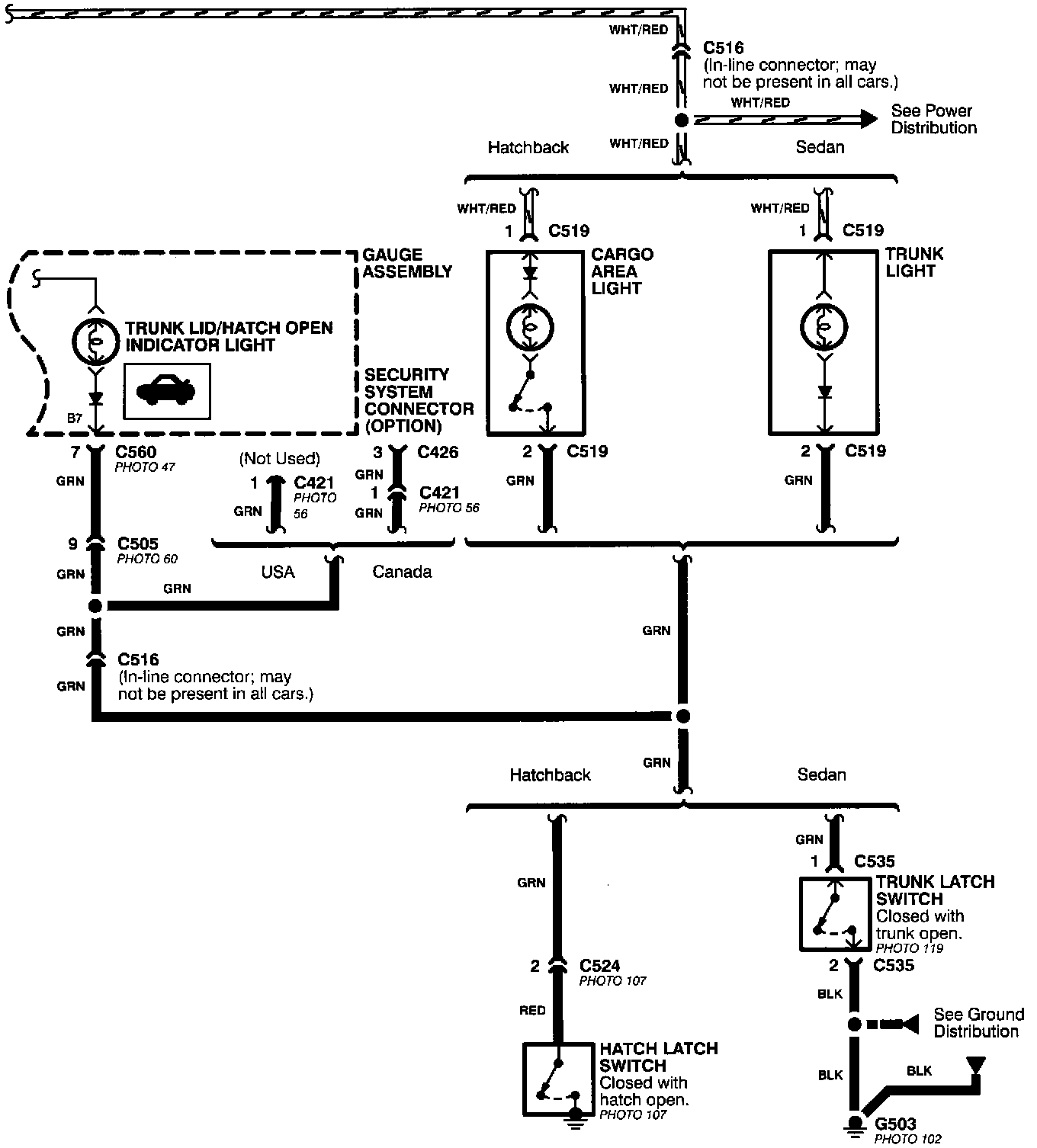

Ceiling, Spot, Cargo Area, And Trunk Lights & Door, Hatch And Trunk Lid Open Indicators (Part 2 Of 2):
