Oxygen Sensor: Testing and Inspection

Follow the steps as shown in the applicable Troubleshooting Flowchart.

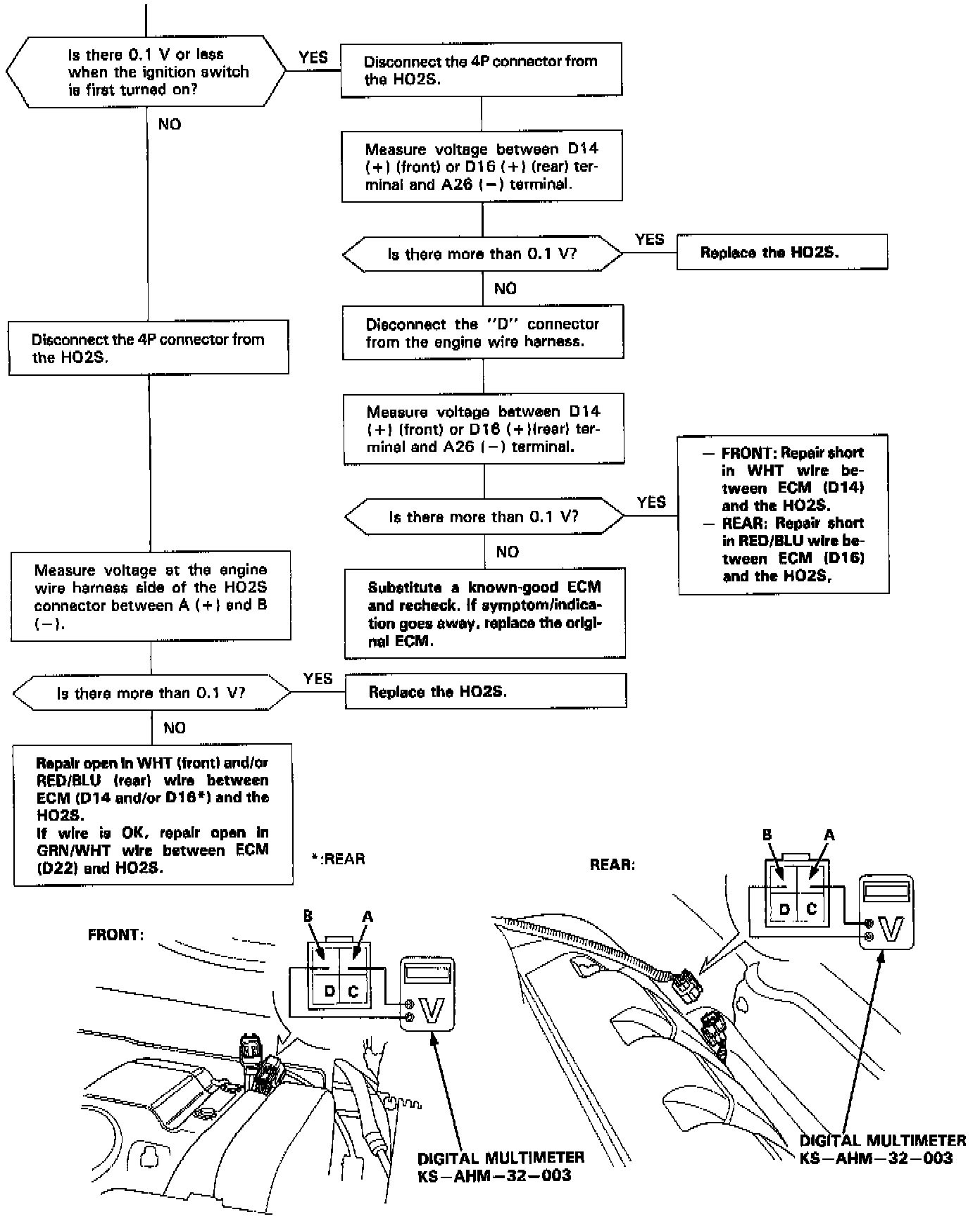

Oxygen sensor inspection for code 1.








Oxygen sensor inspection for code 43.

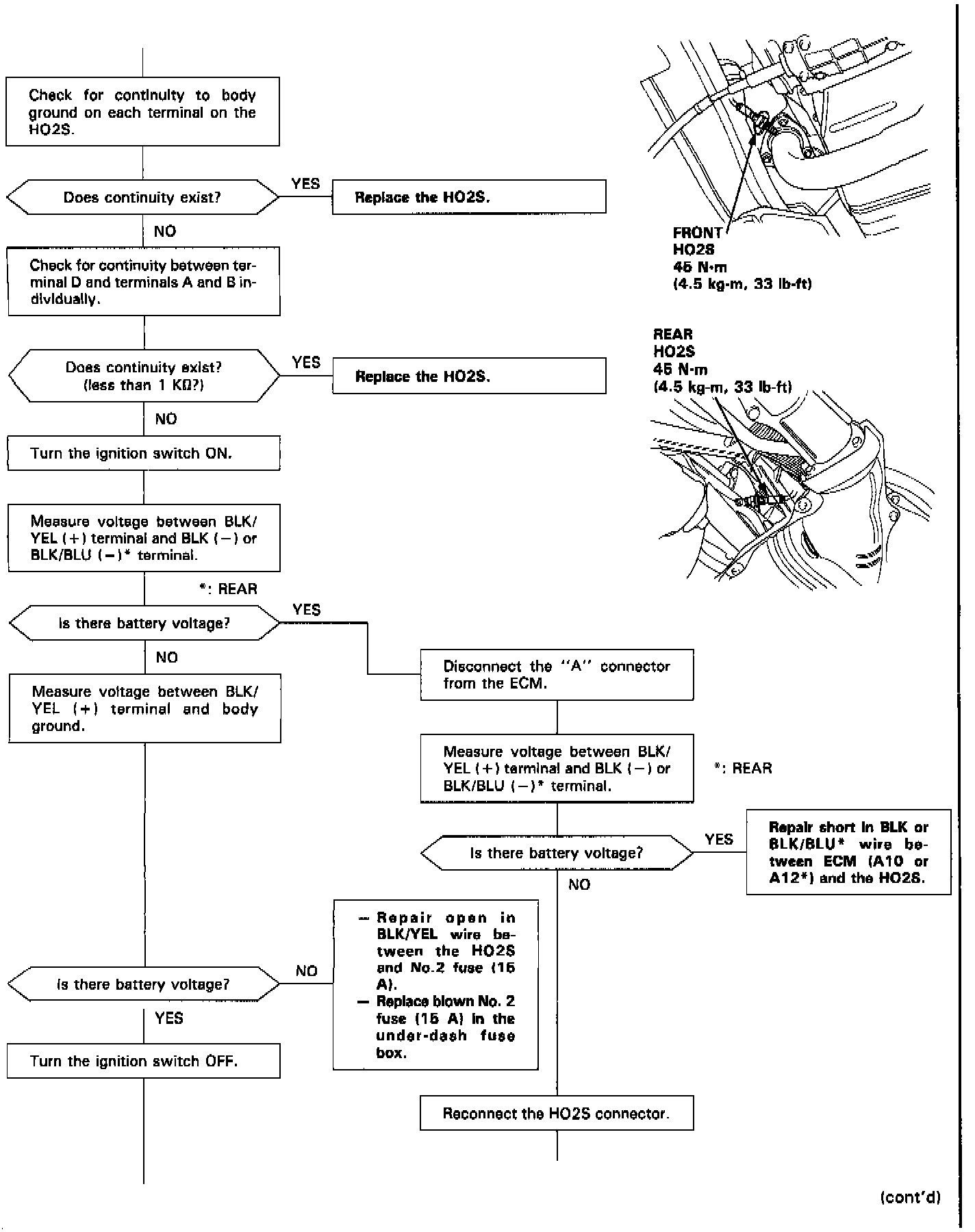

Oxygen sensor heater inspection.
