Home >> Acura >> 1994 >> NSX V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Testing and Inspection

Knock Sensor: Testing and Inspection

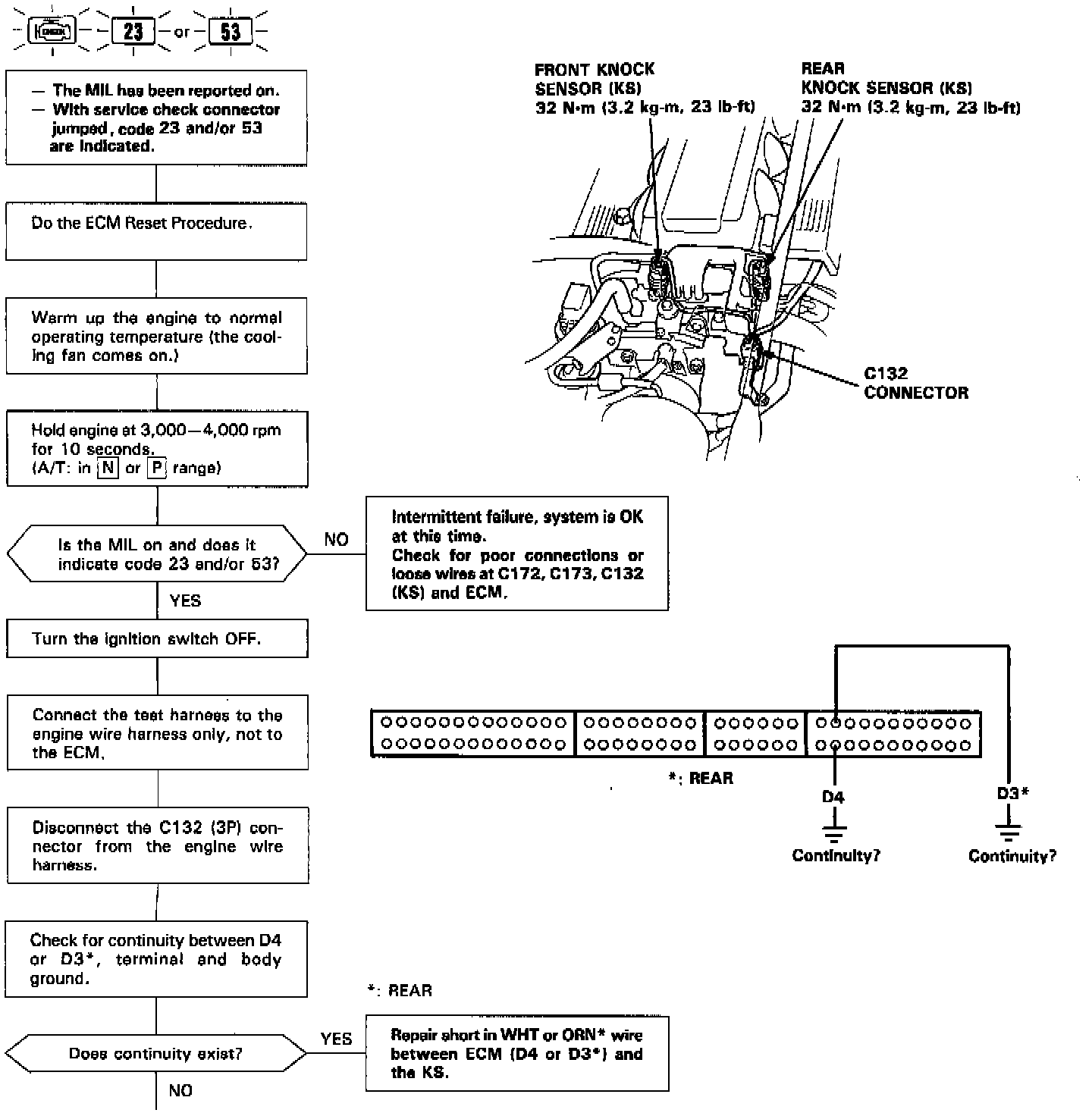

Follow the steps as shown in the Troubleshooting Flowchart to diagnose either the front or rear knock sensor.
