Intermittent Wiper Control Circuit
Intermittent Wiper Control Circuit

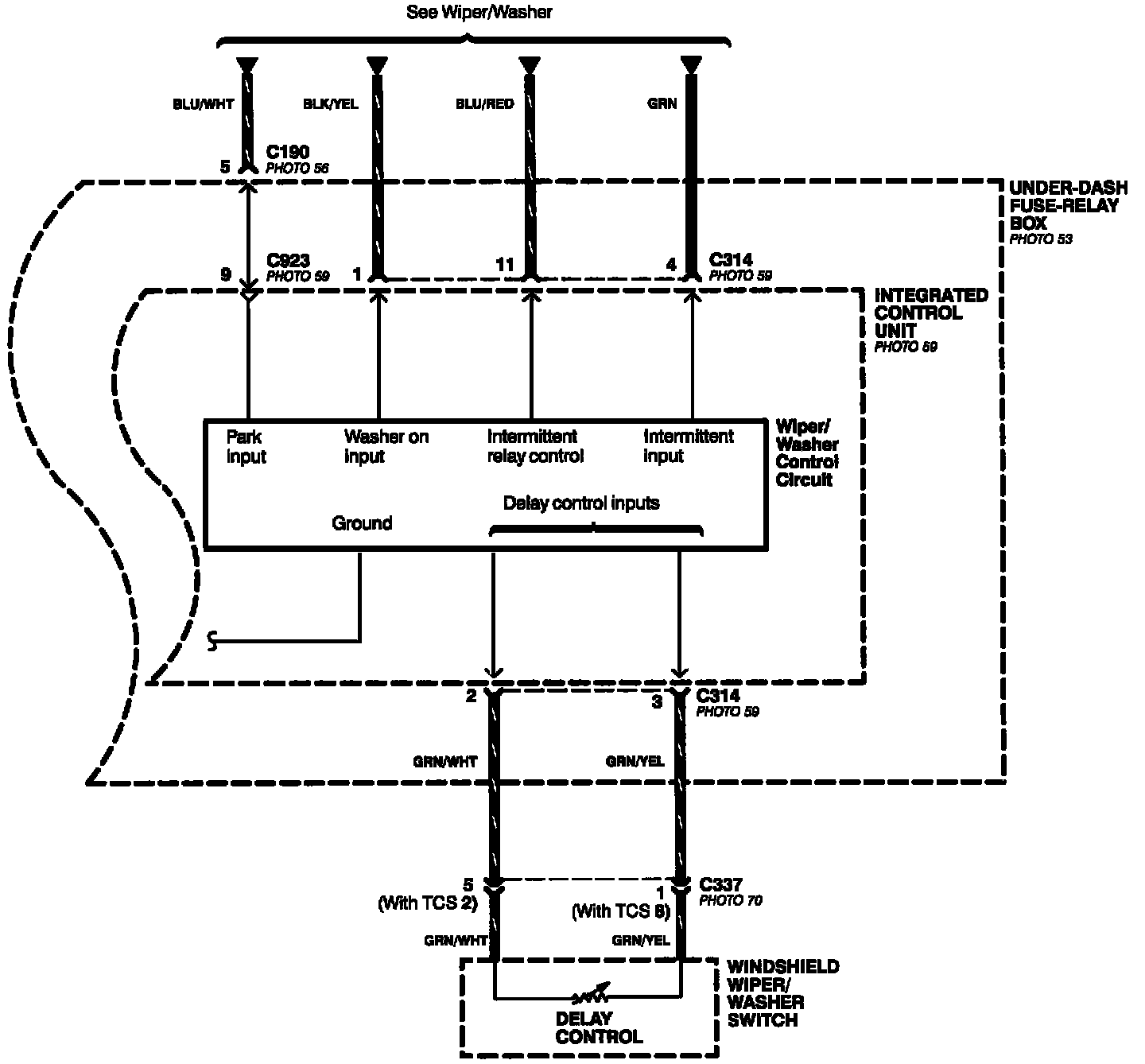

Integrated Control Unit- Intermittent Wiper Control Circuit:
