Home >> Acura >> 1994 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Change Holder Assembly >> Removal

Removal





1. Remove the shift piece shaft, then remove the shift piece and the interlock.

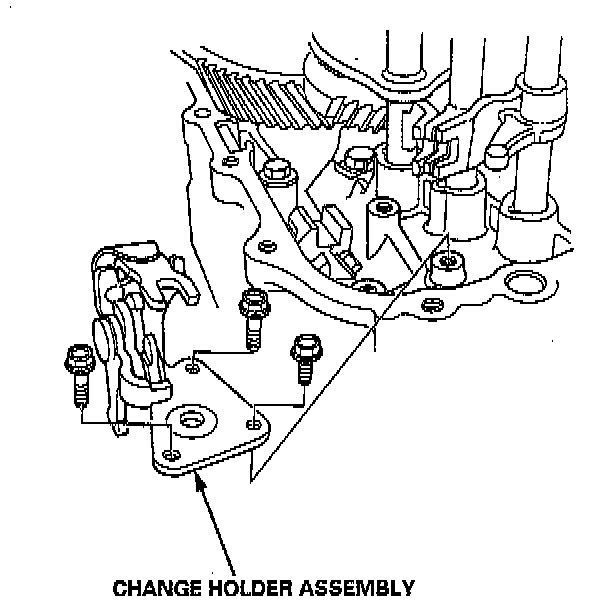

2. Remove the change holder assembly.
