Exploded Views
Exploded Views

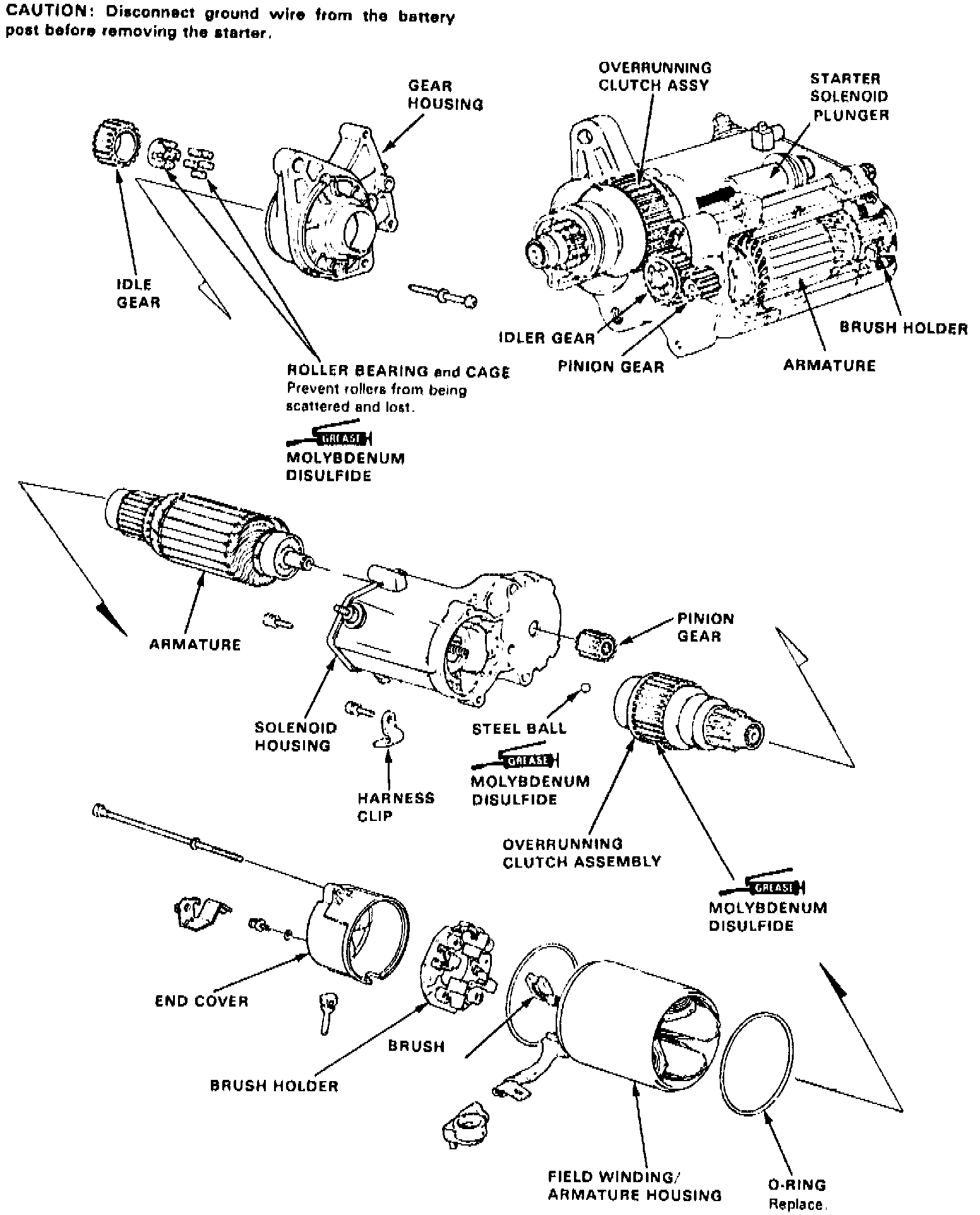

Fig. 1 Exploded View Of Starter Motor:
Refer to
Fig. 1
for
starter motor
exploded view.
