Mode F - Open In Passenger's Airbag Inflator
MODE F: OPEN IN FRONT PASSENGER'S AIRBAG INFLATORNOTE: The original radio has a coded theft protection circuit. Be sure to get the customer's code number before disconnecting the battery cables.
1. Disconnect the battery negative cable and then the positive cable. Then connect the short connector(s) (RED) to the airbag(s).

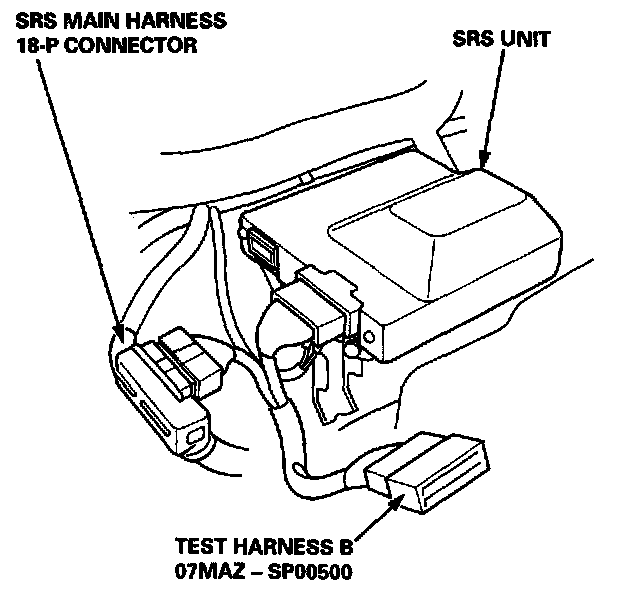

2. Connect Test Harness B between the SRS unit and SRS main harness 18-P connector.

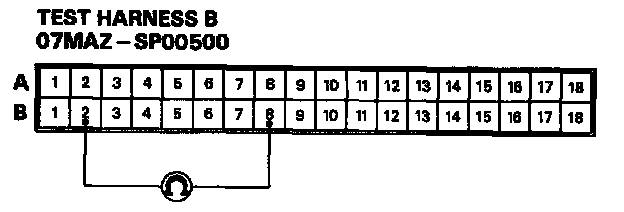

3. Reconnect the front passenger's airbag connector, then measure the resistance between the B2 terminal and the B8 terminal.
- If resistance is more than 0.2 K ohms, go to step 4.
- If resistance is less than 0.2 K ohms, the SRS unit is faulty. Substitute a known-good SRS unit and recheck the voltages according to the chart. SRS Indicator Light Doesn't Go Off

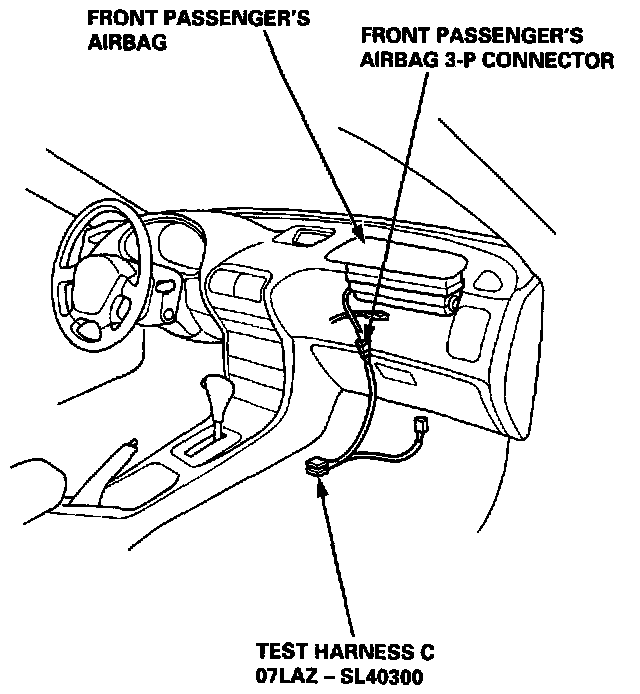

4. Disconnect the front passenger's airbag 3-P connector from the SRS main harness, then connect Test Harness C to the front passenger's airbag side of the connector.
5. Measure the resistance between the No.7 terminal and the No.8 terminal.
- If resistance is more than 0.2 k(ohms), the front passenger's airbag inflator is faulty. Replace the front passenger's airbag assembly and recheck the voltages according to the chart. SRS Indicator Light Doesn't Go Off
- If resistance is less than 0.2 k(ohms), the cable reel is faulty. Replace the cable reel and recheck the voltages according to the chart. SRS Indicator Light Doesn't Go Off
