Home >> Acura >> 1994 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> PSP Switch Signal Circuit Troubleshooting

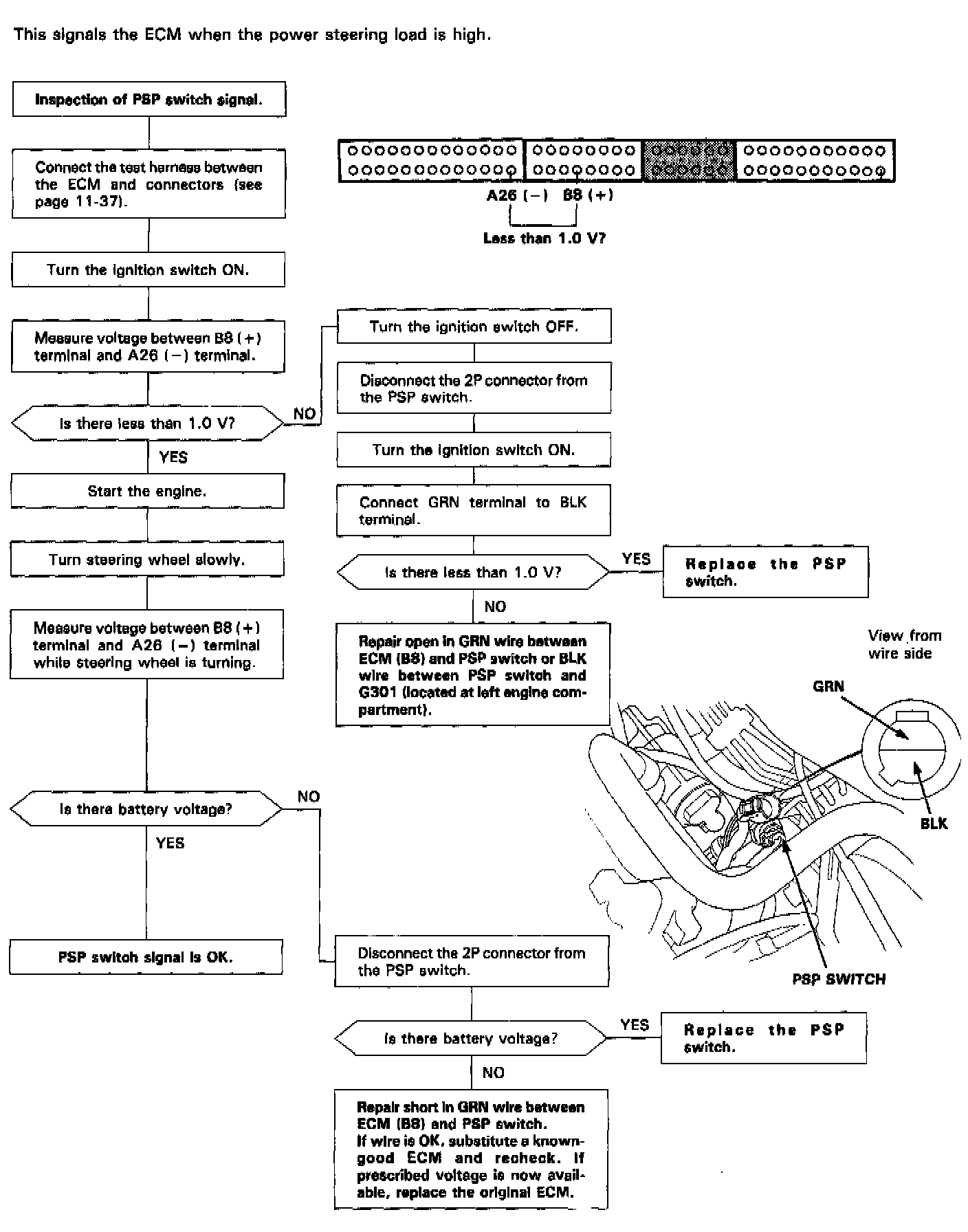

PSP Switch Signal Circuit Troubleshooting




POWER STEERING PRESSURE SWITCH SIGNAL
