Main Wire Harness (Under-Hood Branch)

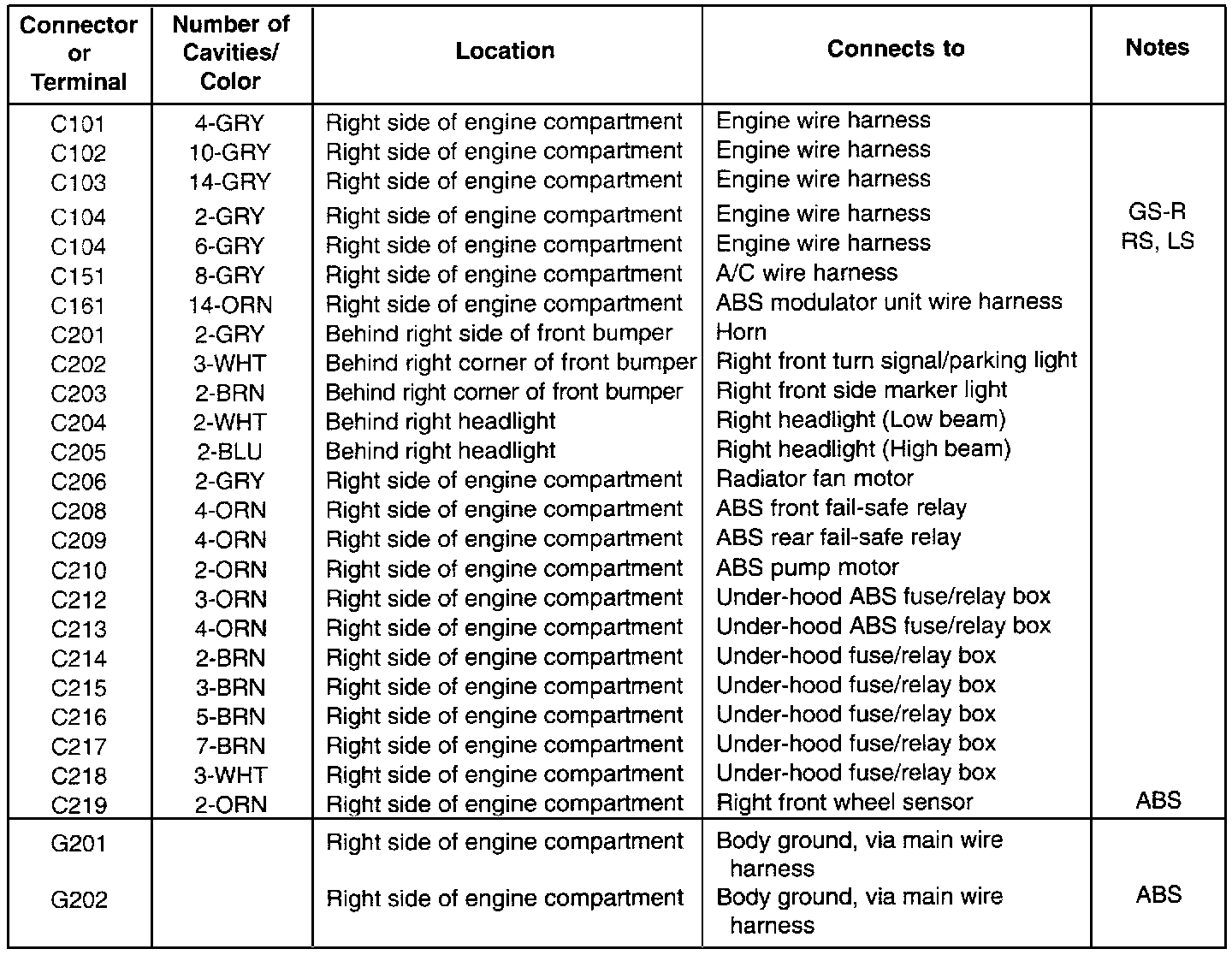

Main Wire Harness (Under-hood Branch):

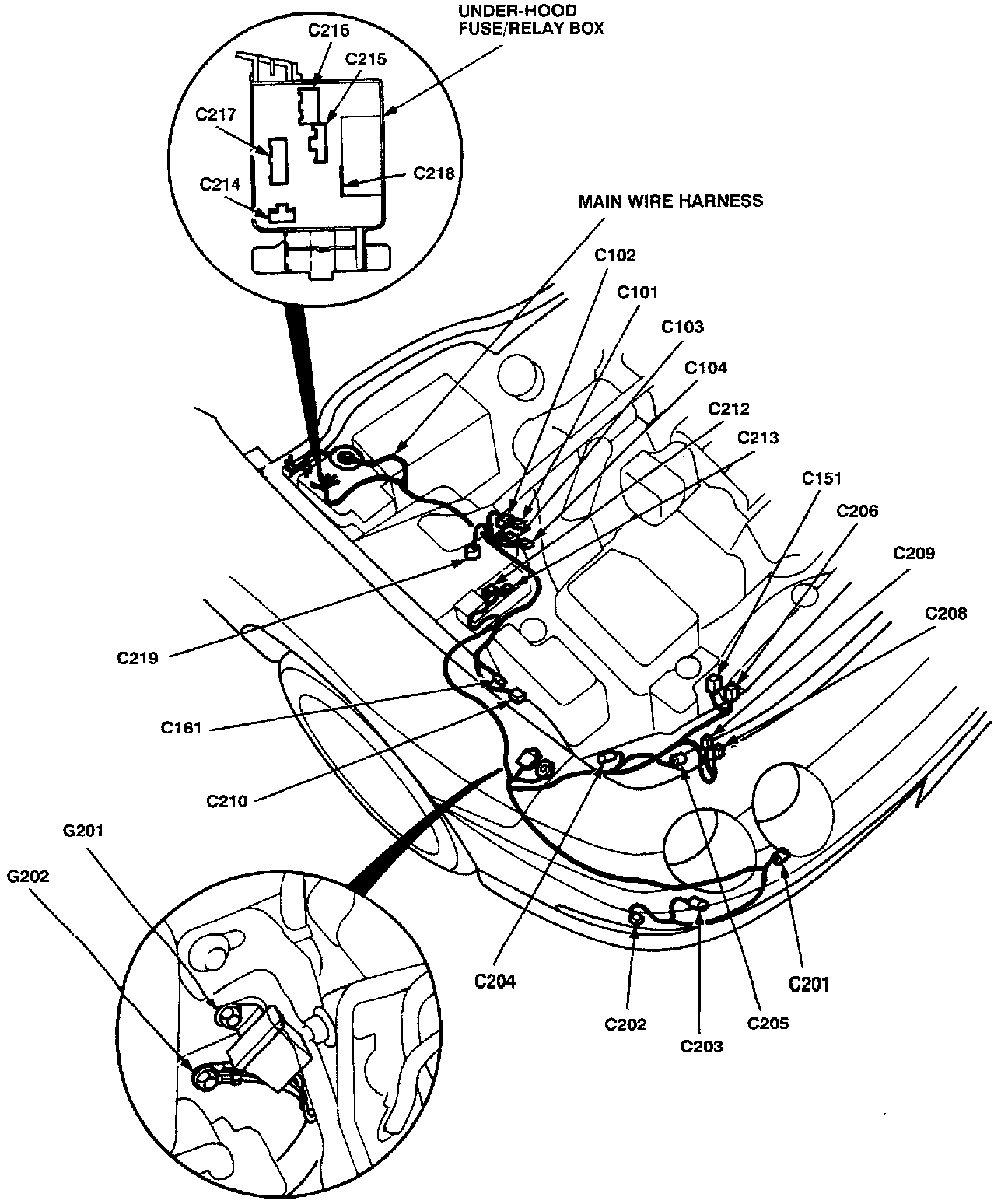

Main Wire Harness (Under-hood Branch):
