Home >> Acura >> 1994 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Locations >> Harness Locations >> Main Wire Harness (Right Branch)

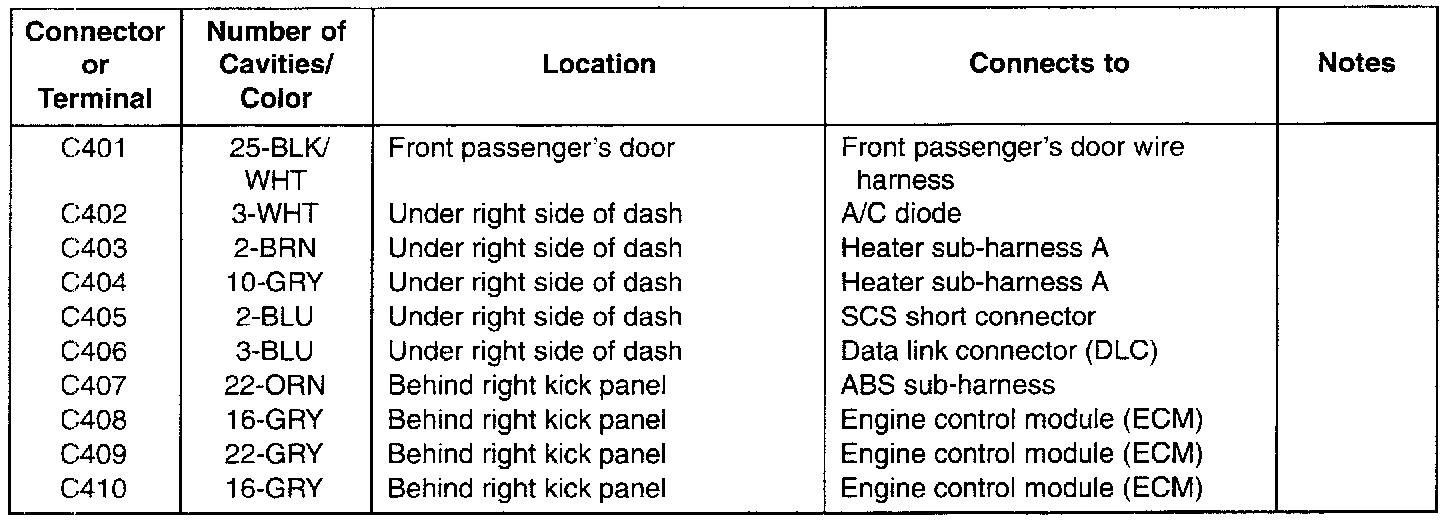

Main Wire Harness (Right Branch)

Main Wire Harness (Right Branch):



Main Wire Harness (Right Branch):
