Piston: Service and Repair

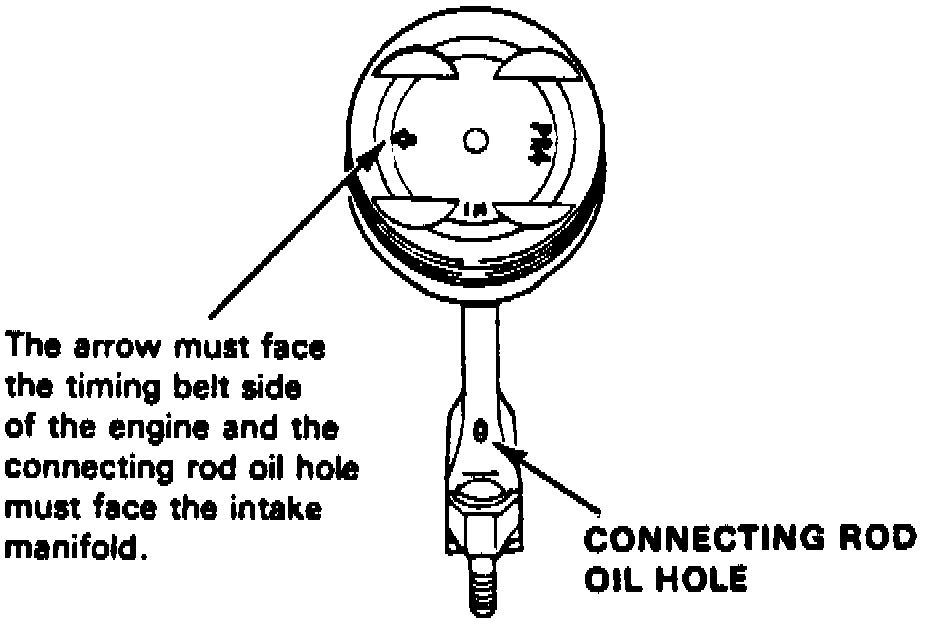

Fig. 76 Piston & Connecting Rod Assembly:

When installing piston and connecting rod assemblies into engine, arrow on piston head must face timing belt side of engine and connecting rod oil hole must face intake manifold, Fig.76.
