Radiator Cooling Fan Motor Relay: Locations

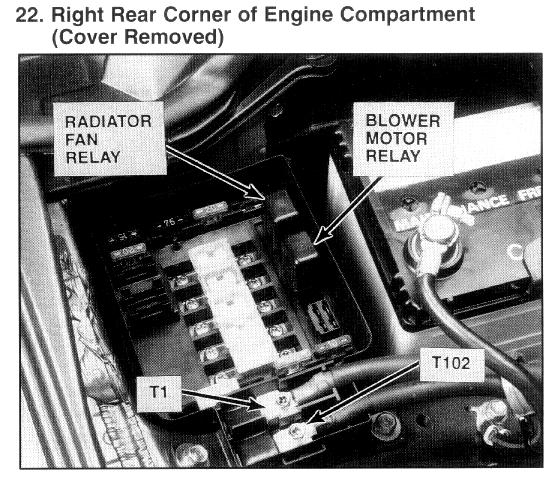

Photo 22 - Blower Motor Relay:




Right Rear Corner Of Engine Compartment
(Cover Removed)
