Power Distribution
>>
From Batt to Ign Switch, Fuses & Relays
From Batt to Ign Switch, Fuses & Relays

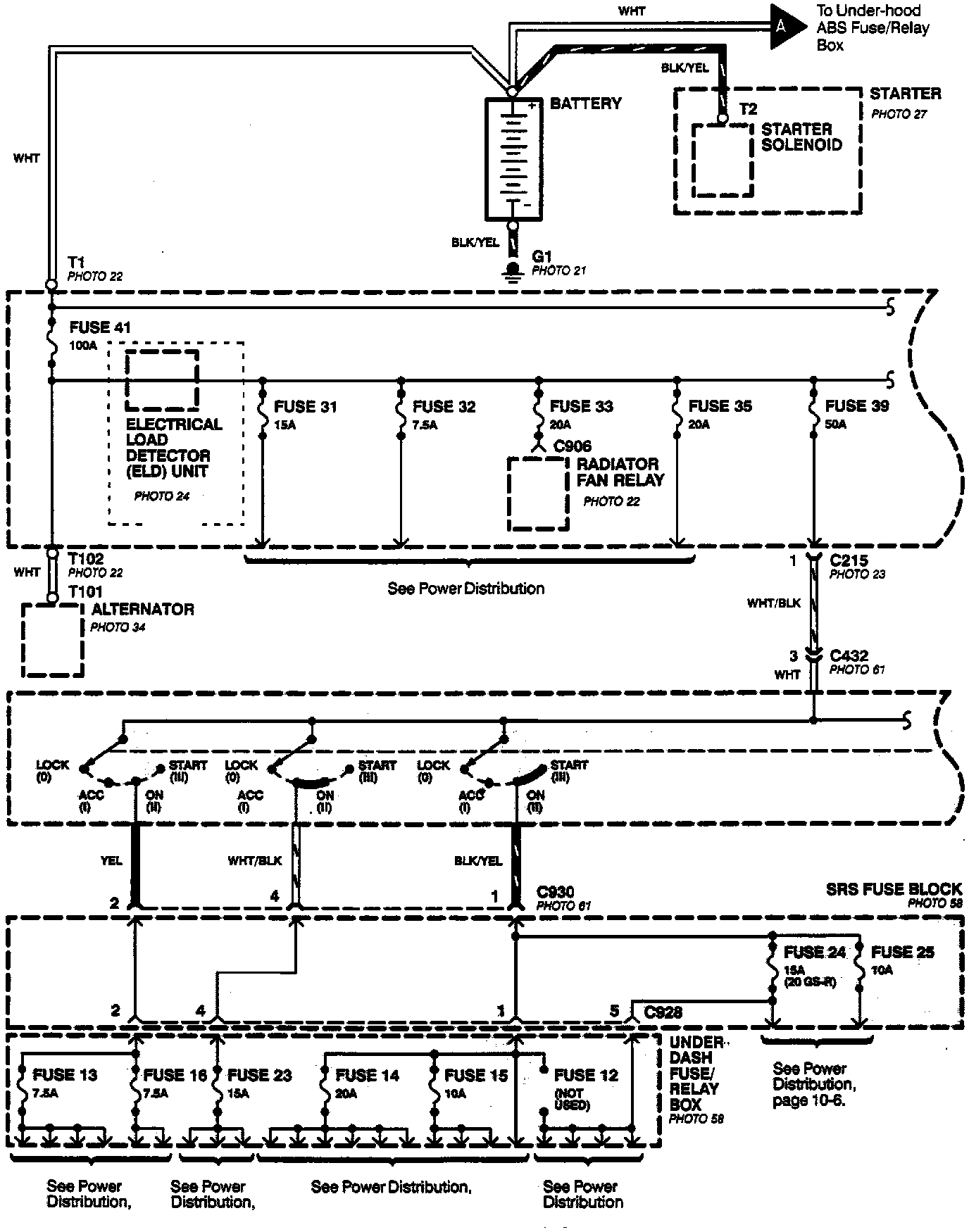

Power Distribution- From Battery To Ignition Switch, Fuses And Relays (Part 1 Of 2):

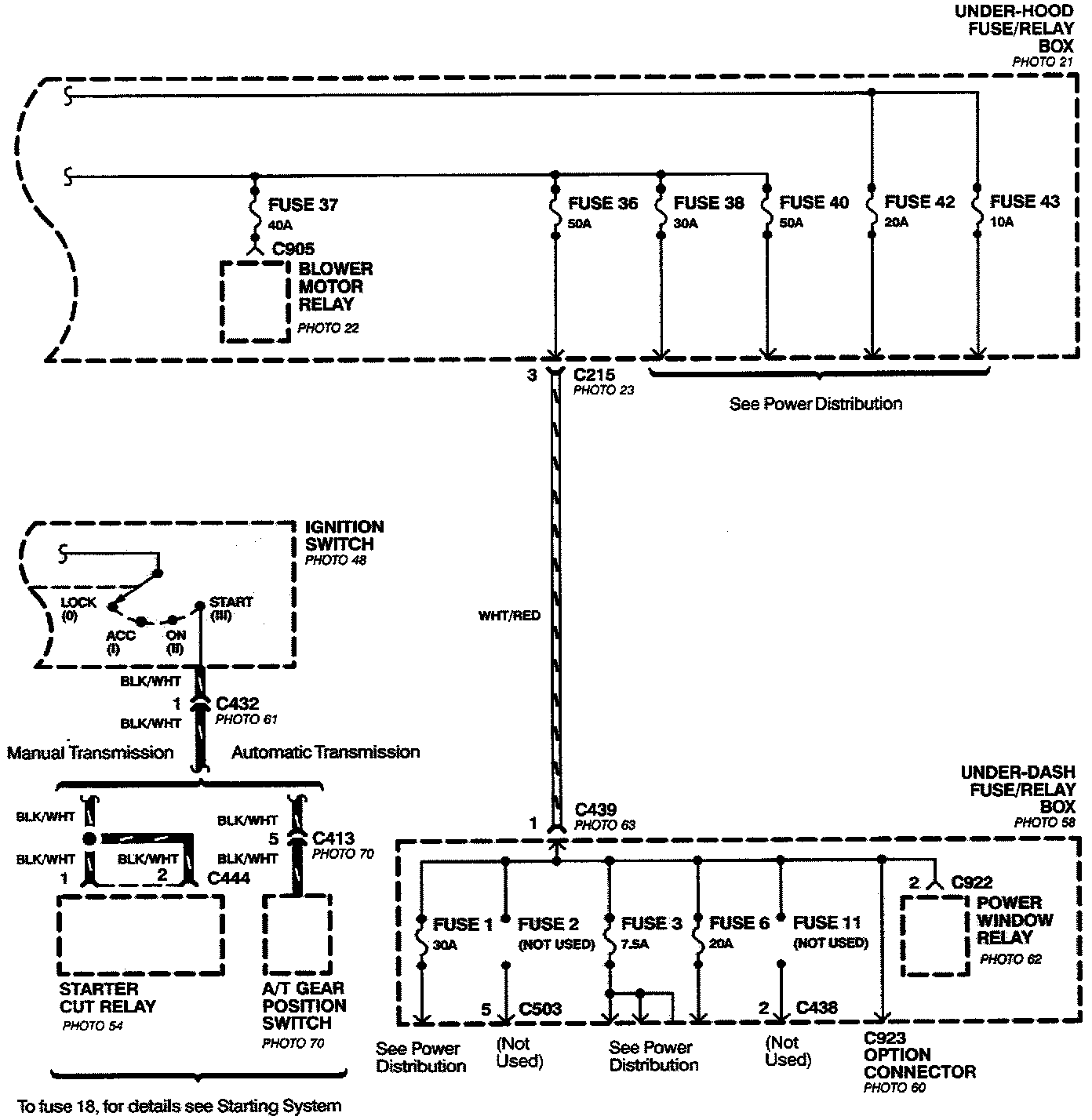

Power Distribution- From Battery To Ignition Switch, Fuses And Relays (Part 2 Of 2):
