Home >> Acura >> 1994 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Circuit Diagrams

Circuit Diagrams

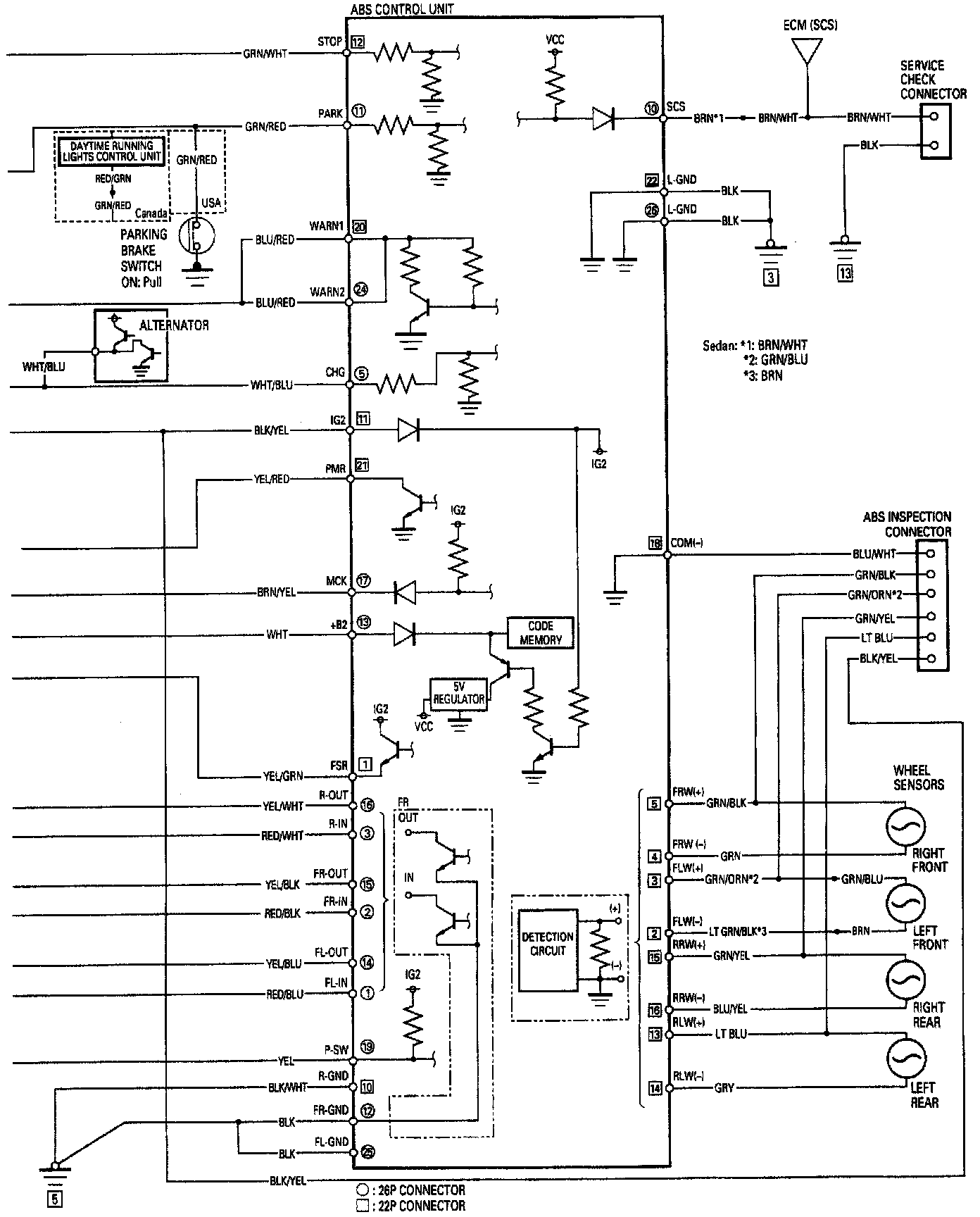

ABS Circuit Diagram 1 Of 2:

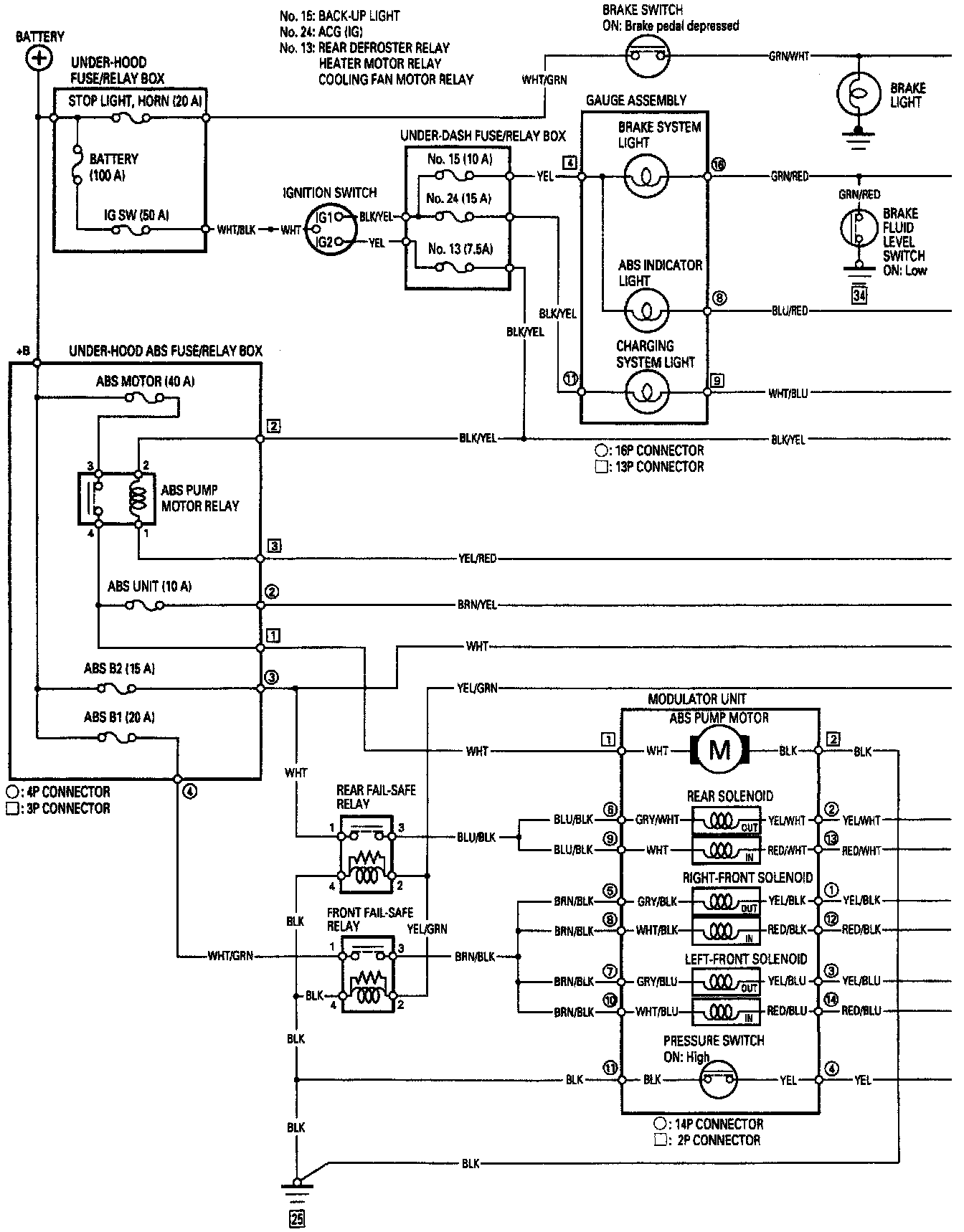

ABS Circuit Diagram 2 Of 2:
