Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Trunk / Liftgate Latch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

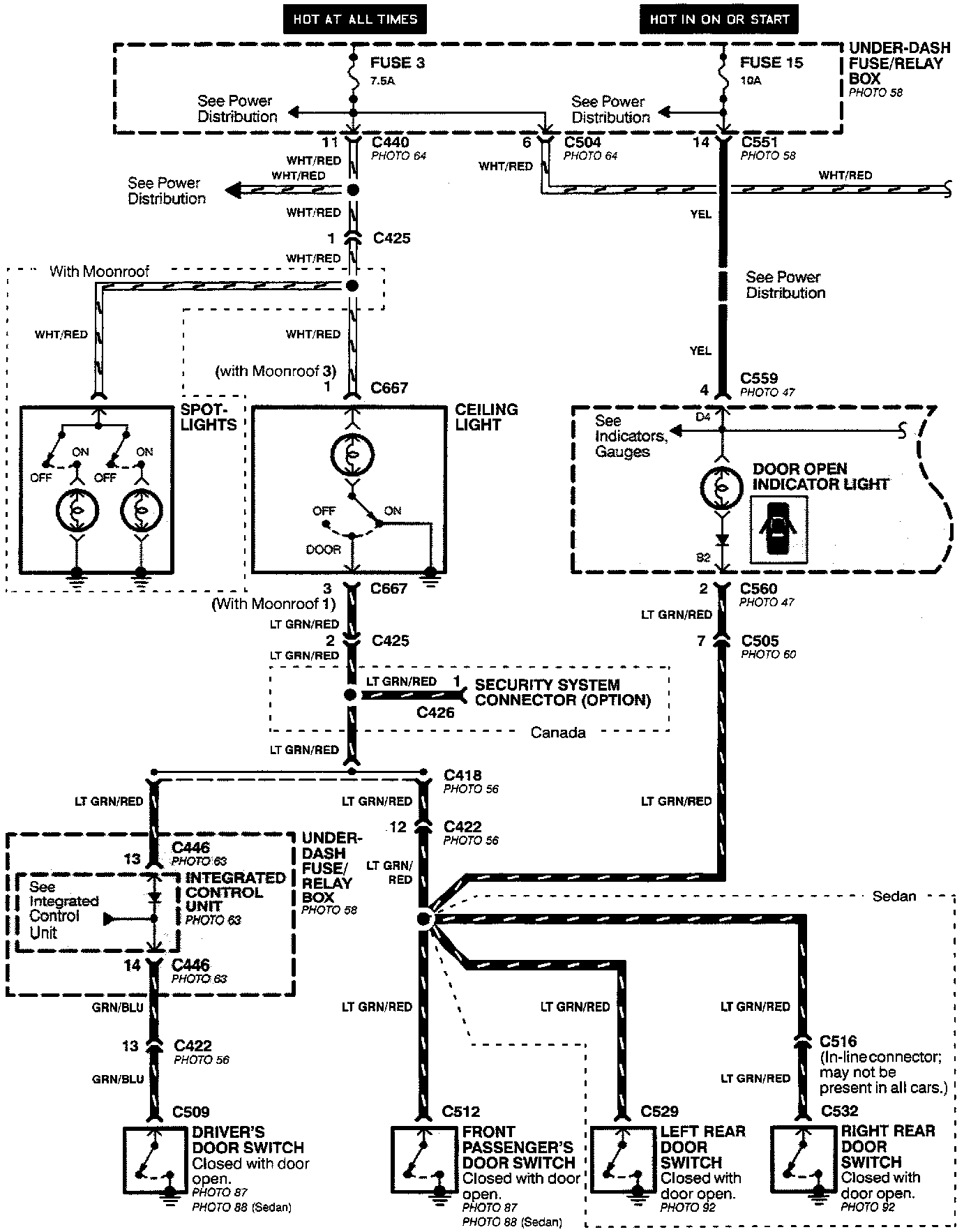

Ceiling, Spot, Cargo Area And Trunk Lights:

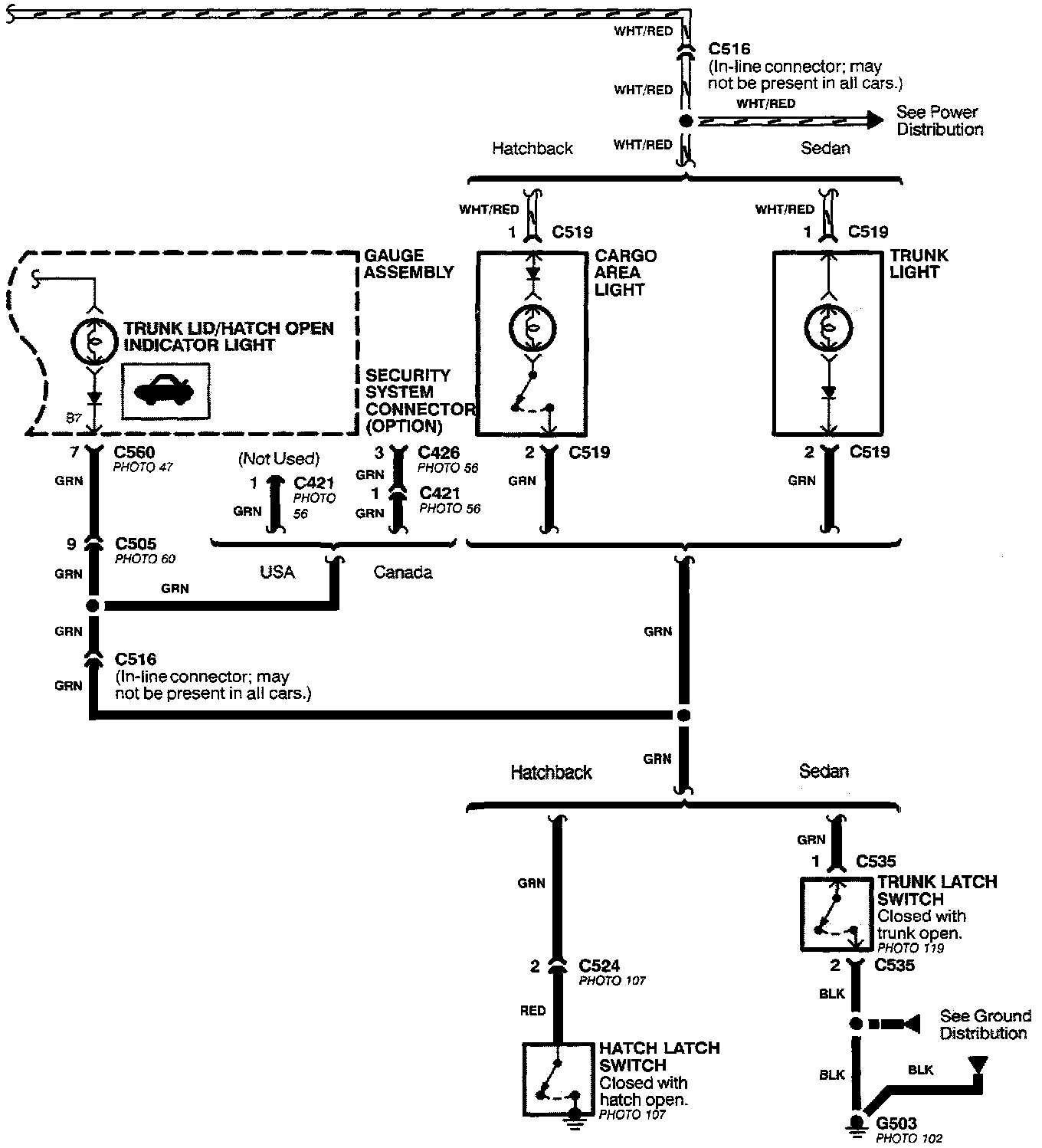

Door, Hatch, And Trunk Lid Open Indicators:
