Home >> Acura >> 1994 >> Integra (GS-R) L4-1797cc 1.8L DOHC (VTEC) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Lock Cylinder Switch >> Locations >> Key Cylinder Switch

Key Cylinder Switch

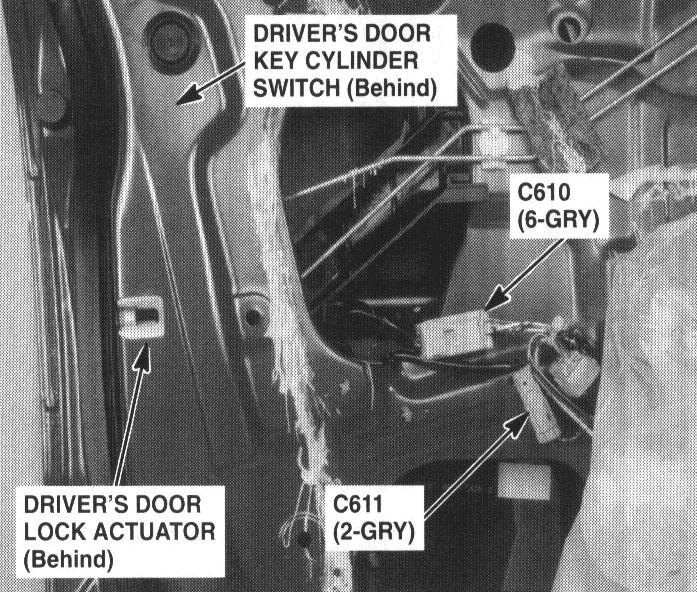

85. Rear of Driver's Door:




Rear Of Driver's Door (Sedan Shown, Hatchback Similar)
